Flush Mount - GoMate Solar Charge Controller 30A - 12/24V

The GoMate is a negative-ground, flush mount solar charge controller, designed for an aesthetically clean and integrated look on Caravan, Boats & Motorhomes. The GoMate adopts highly efficient PWM charging mode and is equipped with a special LCD display to show the real-time operating statusof the system.

 *Earn Double Reward Points on all Often Purchased Together items*

Item Number:
GM3024N
Your Price:
£49.95
Points:
22 Worth £1.10
Your Total:
Quantity:

Often Purchased Together

Remote Temperature Sensor
Remote Temperature Sensor
£9.98
£8.98 | 20 Points

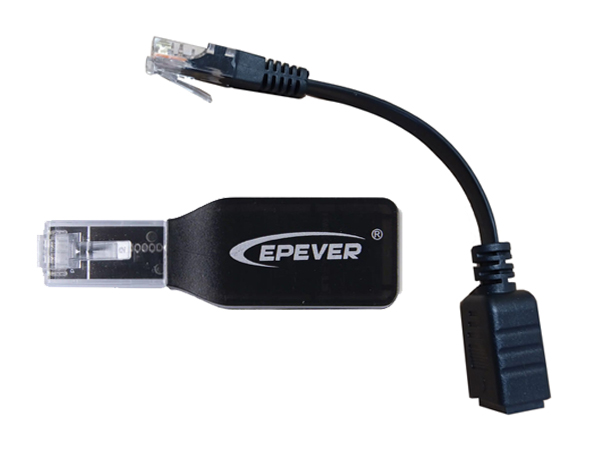

Epever WiFi Adapter 2.4G RJ45-D and Coupler
Epever WiFi Adapter 2.4G RJ45-D and Coupler
£33.89
£32.89 | 14 Points
Flush Mount - GoMate Solar Charge Controller 30A - 12/24V
Flush Mount - GoMate Solar Charge Controller 30A - 12/24V
Flush Mount - GoMate Solar Charge Controller 30A - 12/24V
Flush Mount - GoMate Solar Charge Controller 30A - 12/24V
Flush Mount - GoMate Solar Charge Controller 30A - 12/24V
Flush Mount - GoMate Solar Charge Controller 30A - 12/24V
Submit a Review
View Document 1 GM3024N-SunshineSolar.pdf
Description

The GoMate is a negative-ground, flush mount solar charge controller, designed for an aesthetically clean and integrated look on Caravan, Boats & Motorhomes. The GoMate adopts a highly efficient PWM charging mode and is equipped with a special LCD display to show the real-time operating status of the system.This charge controller is fully automatic and provides simple usage patterns to users.

Features

  • Flush mounted and embedded installation design
  • High quality and low failure rate components (ST/IR) to ensure the product lifetime
  • 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
  • Battery type: Sealed, Gel, Flooded, and User
  • Real-time energy statistics feature
  • Battery temperature compensation feature
  • Digital LCD monitor for informative display of operational parameters and fault messages
  • Voltage drop and temperature compensation sampling interface design
  • RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
  • Multiple communication peripherals
  • Rated charging current at working temperature without de-rating
  • Extensive electronic protections
  • Monitor and set the parameters via PC software or APP


    • Mechanical Parameters

    Dimension: (L×W×H) 178.5×105.5×48.3mm

    Mounting dimension: 166.5×93.5mm

    Mounting hole size: Φ5mm

    Terminal: 16mm2 /6AWG

    Recommended cable: 10mm2 /8AWG

    Net Weight: 0.31kg


    PRODUCT CODE: GM3024N
