What is a PWM Dual Solar Charge Controller?

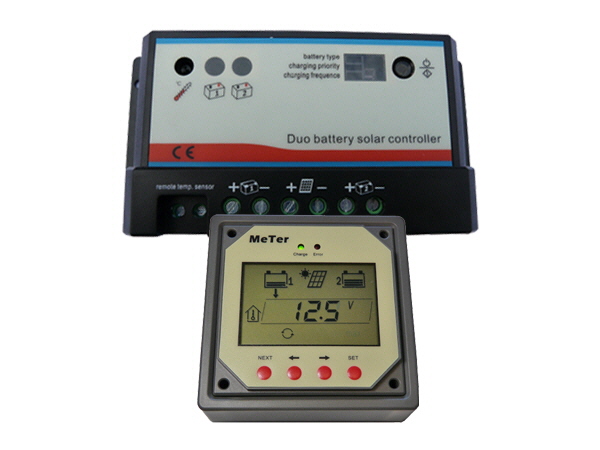

A PWM (Pulse Width Modulation) dual battery controller is a device used to charge and manage two separate batteries from a single charging source, typically an alternator or solar panels. It is commonly used in various applications, such as:

1. Automotive and Marine Applications: - In vehicles with a main battery (starter battery) and an auxiliary battery (for accessories, campers, or other equipment) - In boats or RVs with a starting battery and a deep-cycle battery for trolling motors, lights, or other accessories
2. Renewable Energy Systems: - In off-grid or grid-tied solar power systems with a backup battery bank - In wind or hydro power systems with battery storage.

 The PWM dual battery controller works by using pulse width modulation to regulate the charging current and voltage supplied to each battery. It typically has separate charging outputs for the two batteries and can prioritize charging one battery over the other or charge them simultaneously based on the user's preferences or battery conditions.
 Key features of a PWM dual battery controller include:

• Intelligent Charging: The controller monitors the state of charge and voltage levels of each battery and adjusts the charging current accordingly to prevent overcharging or undercharging.
• Battery Isolation: It isolates the two battery banks, preventing them from draining each other or causing unwanted interactions.
• Load Management: Some controllers allow connecting loads (e.g., accessories, lights) to one or both battery banks and can prioritize charging based on the load requirements.
• Battery Type Compatibility: Many controllers support various battery types, such as lead-acid, GEL or AGM batteries, and can adjust the charging profiles accordingly.
• Energy Monitoring: Advanced controllers may provide real-time monitoring of battery voltage, current, and other parameters, often with remote monitoring capabilities.

 PWM dual battery controllers are designed to efficiently manage and extend the lifespan of multiple battery systems, ensuring reliable power supply and preventing damage due to improper charging or discharging.
