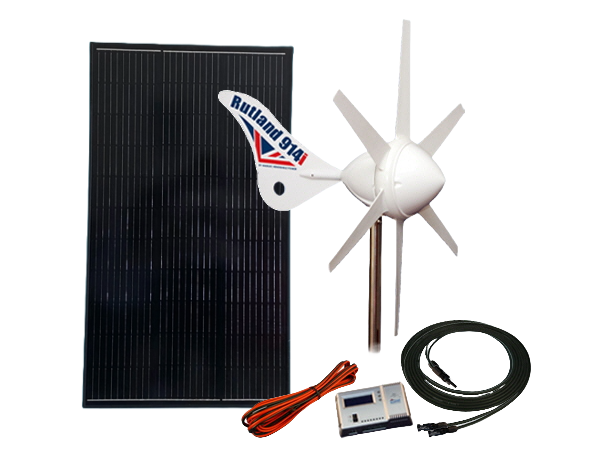

Sunshine Solar & Wind Power Kit 422W - 12V

Utilise two natural resources with the Sunshine Solar and Wind Power kit. With a maximum power output of 422W 12V this power kit has numerous uses from motorhome, boats, and caravans to remote location buildings. The HRDi Solar and Windcharger controller supplied with this kit features latest technology for charge regulation of one or two seperate battery banks from small Rutland wind turbines and solar panels.

"Best of all Save money on all package deals"

Your Price:
£1,140.00 £1,085.00 (Save 5%)
Points:
348 Worth £17.40
Your Total:
Quantity:

Qty

Contents

1
Sunshine Solar Panels 160W 12V Crystalline
1
6M Extension Cables & Connectors
10
Twin Core Cable 20A 12V
1
Rutland 914i Windcharger 12V
1
HRDi 12V/24V Solar & Wind Controller
Description

Solar Panel Specifications

  • Maximum Power (Pmax): 160W
  • Maximum Power Current (Ipm): 8.31A
  • Maximum Power Voltage (Vpm): 18.1V
  • Short Circuit Current (Isc): 8.66A
  • Open Circuit Voltage (Voc): 22.4V
  • Nominal Operating Cell Temp. (NOCT): -45 to 80C
  • Maximum System Voltage: DC1000V
  • Size: 1470mm x 670mm x 35mm
  • Weight: 11.20kg

Rutland 914i Windcharger Specifications

  • Cut in Windspeed. 3 m/s
  • Output Voltages Available (Nominal). 12V
  • Packed Weight & Dimensions. 13.1kg 370 x 300 x 450mm
  • Generator Type. Low friction 3 phase, brushless
  • Yaw Rotation. Slipring for 360 free rotation. Low brush wear.
  • Turbine Diameter. 910 mm
  • Turning Radius. 557 mm
  • Net Weight. 11.58 kg


Wind Power / Current Ratings:

  • 5m/s     10knots.  24W(1.7A)
  • 11m/s   21knots.  143W(10.3A)
  • 15m/s   29knots.  262W(18.9A)


Rutland 914i Windcharger technical information can be found HERE



Pole mounts available at extra cost.



PRODUCT CODE: KITSW4
