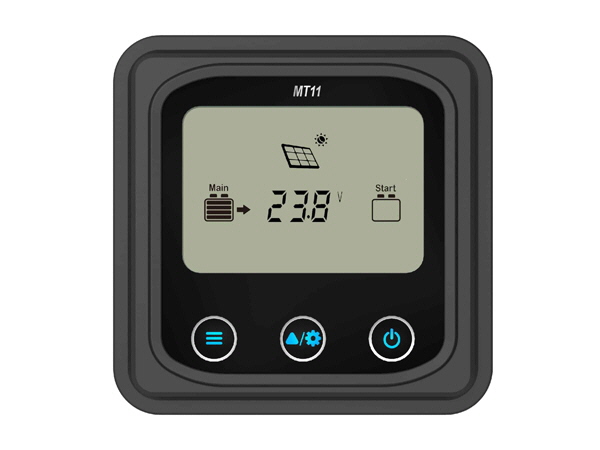

MT11 - Remote Meter for DuoRacer Solar Controller
Monitor your solar system with ease using the MT11 Remote Meter. This compact display lets you view key data such as battery voltage, charging status, and system performance in real time. Designed for compatibility with the DuoRacer series of solar controllers, it provides a simple and convenient way to keep track of your solar setup and ensure optimal efficiency.
Description
Features
- Automatically identify and display the type,model and relevant parameter data of controllers.
- Real-time display the operational data and working status of the connected devices indigital,graphics and textual forms by a large-screen multifunction LCD.
- Three touch buttons are easy and quick to operate.
- No need for external power supply. Charge controller supply the power for MT11.
- It can browse the controller’s parameters, set the battery typeand temperature unit, and clean the generated energy.
- Real-time display of failure information of the connected devices.
- Longer communication distance based on RS485.
LCD features
- Time
- Battery 1 - Voltage Max and Min
- Battery 2 - Voltage Max and Min
- PV - Voltage and AH
- Remote Temperature
Specifications
- Self-consumption(Power on) 13mA/5Vdc
- Self-consumption(Power off) 4mA
- Communication way RS485
- RS485 cable
- IP20
- Environment temperature: -20℃～+70℃
- Storage temperature range: -20℃～+70℃
- Enclosure Dimension: 98.4 × 98.4mm
- Base cover dimension: 114 ×114mm
- Weight: 0.11kg
Please Note: Only Compatible with the following products:
DR1206N_DDS
DR2210N_DDS
DR3210N_DDS
PRODUCT CODE: MT11
