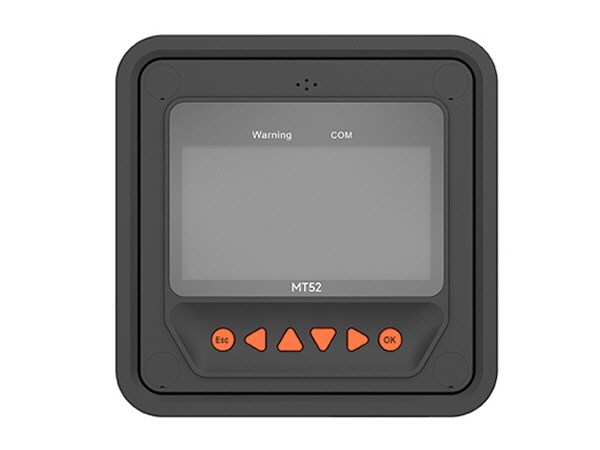

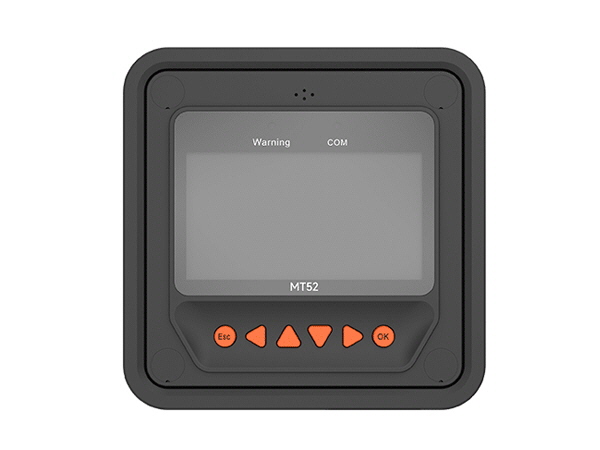

MT52 - Remote Meter for Solar Controller

MT52 Remote Display for Solar Charge Controllers - Features

• Easy to install and operate
• Real-time display of fault alarms
• Locally reading of real-time parameters
• Powered by the controller directly
• Equipped with an RJ45 communication port

Real-time monitoring of system data, browsing and modifying related parameters, and restoring factory defaults.

LCD features

• Battery 1 - Voltage Max and Min
• PV - Voltage and AH
• Remote Temperature

Self-consumption

• Backlight ON<23mA
• Backlight OFF<15mA

Mechanical Parameter

Faceplate dimension: 98mm × 98mm

Frame dimension: 114mm × 114mm

Communication port

• RJ45

Communication cable (m)

• Standard: 2m,
• Longest: 50 m

Net weight Simple package:

• Standard package: 0.32kg

Environmental Parameter - Environment temperature

• -20℃~+70℃

PRODUCT CODE: MT52
