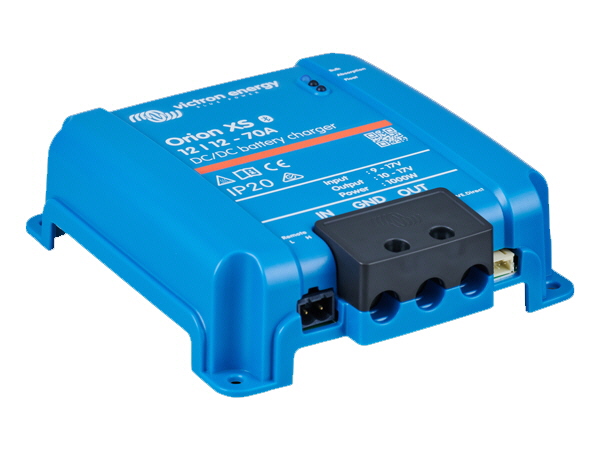

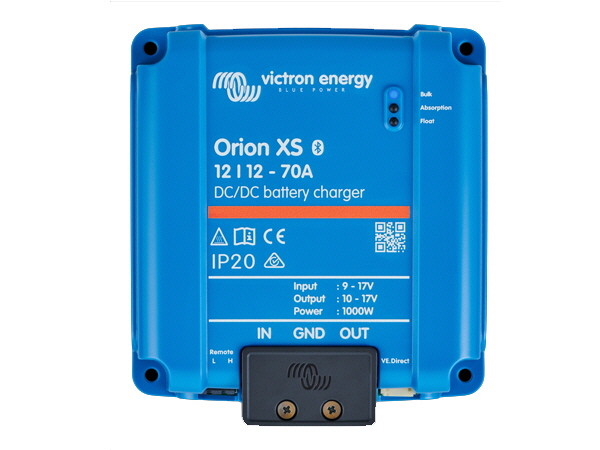

Orion XS 12/12-70A DC-DC Battery Charger
ORI121221040 - The Victron Orion XS 12/12-70A DC-DC Battery Charger is a compact, powerful and highly efficient 70A battery-to-battery charger designed for modern 12V dual battery systems. Ideal for campervans, motorhomes, marine installations, service vehicles and off-grid power systems, the Orion XS provides controlled charging from an engine alternator to a leisure, house or service battery.
With built-in Bluetooth, full configuration through the VictronConnect app, and support for smart alternators, the Orion XS 70A is a professional solution for lithium, AGM, Gel and lead-acid battery charging.
Key Features
- 70A DC-DC charging for 12V auxiliary and leisure battery systems
- Adjustable charge current from 1A to 70A
- Up to 1000W continuous output in suitable installation conditions
- Up to 98.5% efficiency for reduced heat and improved performance
- Bluetooth Smart built in for setup and monitoring via VictronConnect
- VE.Direct port for integration with Victron GX devices and VRM monitoring
- Compatible with smart alternators, including many Euro 5 and Euro 6 vehicles
- Suitable for lithium, AGM, Gel and flooded lead-acid batteries
- Remote on/off capability for switches, relays or BMS control
- Parallel operation supported for higher-output charging systems
The Orion XS 12/12-70A allows installers to precisely configure charging voltage and current to suit the battery system. This makes it ideal for lithium battery upgrades, alternator charging systems, campervan conversions and marine house battery charging.
Input current limiting helps protect the alternator, while the adaptive charging algorithm supports safe and efficient charging across a wide range of battery chemistries.
Easy Setup with VictronConnect
Using the VictronConnect app, the Orion XS can be configured, monitored and updated from a smartphone or tablet. Users can adjust charge settings, view live data and check system status without needing additional programming tools.
Ideal Applications
- Campervan and motorhome leisure battery charging
- Marine house battery charging from engine alternators
- Commercial and emergency vehicle auxiliary power systems
- Off-grid 12V battery systems
- Lithium battery upgrade projects
Model: Victron Orion XS 12/12-70A DC-DC Battery Charger
System voltage: 12V to 12V
Input voltage range: 9–17V
Output voltage adjustment range: 10–17V
Charge current: 1–70A adjustable
Maximum efficiency: Up to 98.5%
Connectivity: Bluetooth Smart and VE.Direct
Battery types: Lithium, AGM, Gel and flooded lead-acid
Protection rating: IP20 – dry indoor installation
The Victron Orion XS 12/12-70A is an excellent choice for anyone needing a high-performance, configurable and efficient DC-DC charger for professional 12V battery charging applications.
PRODUCT CODE: ORI121221040
