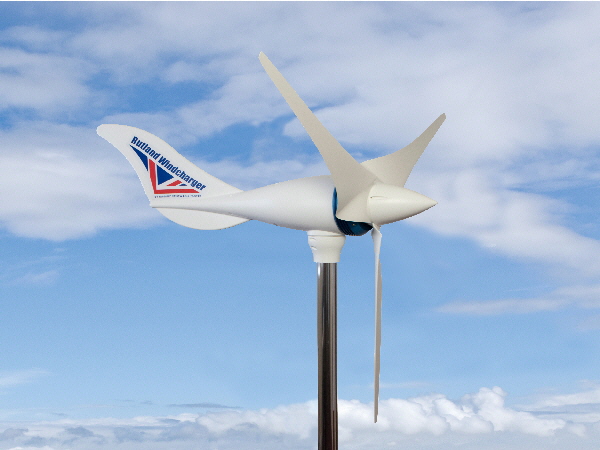

Rutland 1200 Marine Windcharger
Free Power from the Wind!
Experience the powerful but quiet operation of the new Tri-namic profile blade. Our latest windcharger, the Rutland 1200 is the ideal companion for generating energy on board.
The Rutland 1200 is a new generation of turbine designed for users seeking higher generating capacity on board yachts and in off-grid locations. The Rutland 1200 elegantly combines a number of high tech features focused on quiet operation, low windspeed performance and high power delivery up to 500W.
Going long distance cruising? Choose a Rutland for:
● Quiet operation lets you sleep!
● Direct savings on fuel
● Reduced engine running time and maintenance
● Assurance of power for essentials such as navigation, refrigeration etc... and so you can enjoy electrical comforts on-board with confidence.
Rutland 1200 Specifications
| Cut in Windspeed | 2.5 m/s | |
| Output Voltages Available (Nominal) | 12V | 24V |
| Power / Current Ratings: | ||
| 5m/s 10knots | 40W (2.9A) | 40W (1.45A) |
| 11m/s 21knots | 290W (21.3) | 290W (10.7A) |
| 15m/s 29knots | 483W (35.5A) | 483W (17.76A) |
| Packed Weight & Dimensions | 900 x 390 x 185mm 11.25kg | |
| Generator Type | Low friction 3 phase rare earth magnets, brushless. |
| Yaw Rotation | Slipring for 360° free rotation. Low brush wear. |
| Governing Devices | Electronic stalling |
| Turbine Diameter | 1220mm |
| Turning Radius | 620 mm |
| Net Weight | 7.8 kg 17.2lbs |
Supplied with a controller for optimal battery management
