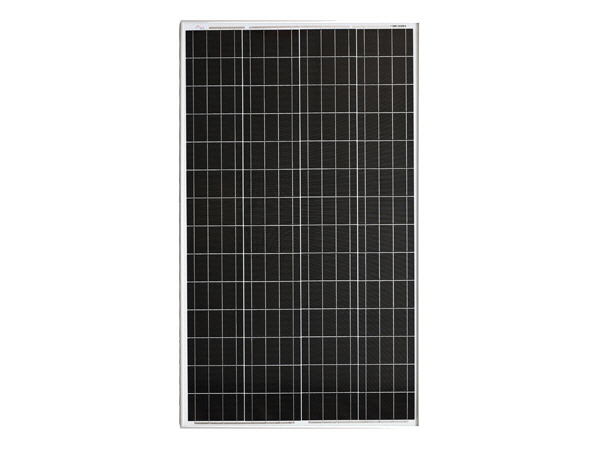

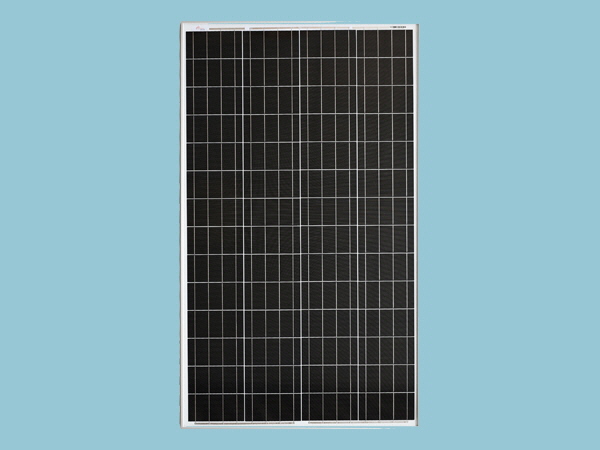

145W - 12V Sunshine Solar Panels - Mono
Harness reliable solar energy with the 145W – 12V Sunshine Mono Solar Panel, designed with high-efficiency monocrystalline cells for superior power output and durability. Ideal for off-grid systems, caravans, boats, and small solar setups, this panel delivers consistent performance even in low-light conditions. Its robust frame and weather-resistant design ensure long-lasting operation in outdoor environments, making it a dependable choice for clean and sustainable energy.
With the SRG145 solar panel you could expect to generate around 48 amps per day when used in conjunction with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
- Product Code. SRG145
- Max Power. 145W ± 3%
- Max Power Voltage. 33V
- Max Power Current. 4.40
- Open Circuit Voltage. 38.6V
- Short Circuit Current. 4.61A
- Normal Operating Cell Temp. -40 to 85°C
- Max System Voltage. DC1000V
- Dimensions. 1180 x 680 x 35mm
- Weight. 8.6kg
Features
- Integrated Streamline Aluminium Roof Mounts
- 5m of twin-core insulated cable
- High Performance Monocrystalline Cells
- Factory fitted aluminium frame
- Multiple pieces can be connected to acquire higher power
- Suitable for charging all types of 12 volt batteries
- Fitted with bypass diodes to minimise the effect of shading
- Completely weatherproof
Guaranteed Performance
- 10 Years Warranty
- 25 Years Service Life
Suitable Solar Charge Controllers
- MPPT Solar Controller 20A - 12/24V
- Dual MPPT Solar Controller 20A - 12/24V
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 4 for Technical.
PRODUCT CODE: SRG145
