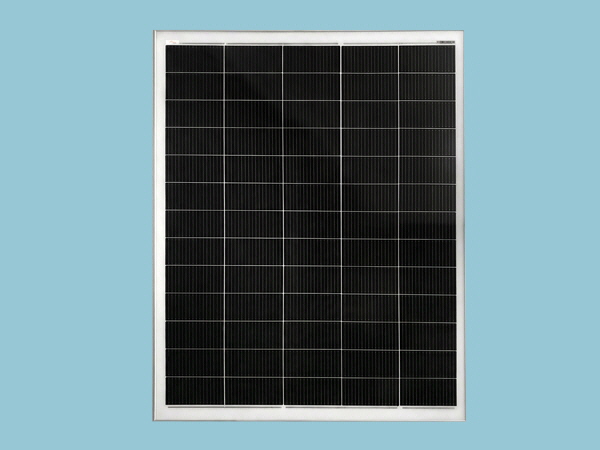

Sunshine Solar Panel 260W - Monocrystalline
With a strong 260W output, this panel is well suited for users who require dependable energy generation to support battery charging, onboard appliances, and solar energy systems. Its high-efficiency cells ensure maximum energy capture even in lower light conditions, helping you get the most from your solar setup throughout the day. Constructed with durability in mind, the panel features a robust frame and weather-resistant materials designed to withstand harsh outdoor conditions.
Whether installed on a caravan roof, marine deck, or ground-mounted system, it provides long-lasting performance and reliability in varying environments.
With a Sunshine 260W solar panel you could expect to generate around 67 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
- Product Code. SRG260
- Max Power. 260W ± 3%
- Max Power Voltage. 41.3V
- Max Power Current. 6.3A
- Open Circuit Voltage. 46.7V
- Short Circuit Current. 6.6A
- Normal Operating Cell Temp. -40 to 85°C
- Max System Voltage. DC1000V
- Dimensions. 992 x 1316 x 35mm
- Weight: 12.2kg
Features
- 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
- A Grade Mono Solar Cells 182mm
- Factory fitted aluminium frame with pre-drilled mounting holes
- Multiple pieces can be connected to acquire higher power
- Suitable for charging all types of 12/24 volt batteries
- Fitted with bypass diodes to minimise the effect of shading
- Completely weatherproof
Guaranteed Performance
- 5 Years Manufacturers Warranty
- 10 Years Warranty 90% Power Output
- 20 Years Warranty 80% Power Output
Suitable Solar Charge Controllers
- MPPT Solar Controller 20A - 12V/24V (10% - 30% more power generation)
- MPPT Dual Solar Controller 20A - 12V/24V (10% - 30% more power generation)
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 4 for Technical.

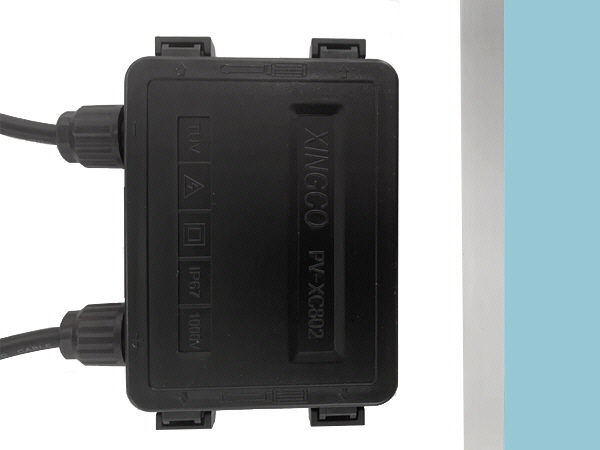

For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
PRODUCT CODE: SRG260
