1350W Sunshine Solar Boat & Motorhome Kit

If you have the roof space why not use it? and lets face it you can never have too much free power.

This solar kit is fast becoming a popular choice for providing supplementary power to large vehicle conversions and commercial vehicles alike, not only power on the land, but also on the water. With shore power and fuel costs increasing it is easy to see why this kit is also popular for large boat owners where roof space is generally not a problem.

The solar power is harnessed with a high efficient, TOPCon (N-Type) Bifacial solar module, with an impressive 30 year linear power warranty this is the range to fit and forget. Whether you are on a liveaboard boat or day cruising if you are looking for many years of maintenance free solar power generation this 1350W will not disappoint.

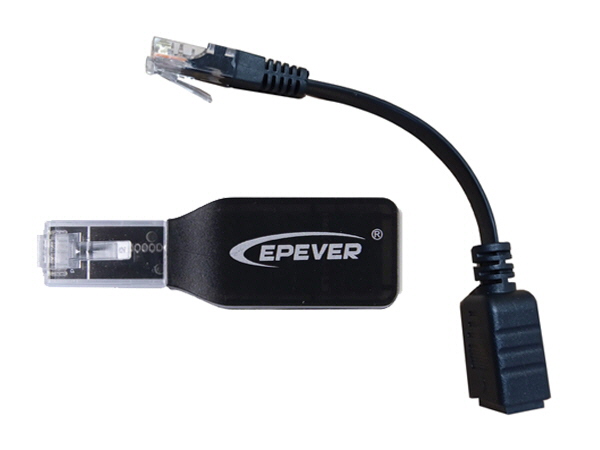

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.

SAVE MONEY - Don't forget you can save money on add-ons to compliment your solar kit. A Remote Meter or Bluetooth Adapter will give valuable real-time data on the overall performance of your kit. Bostik-360 Fixing Adhesive recommended for bonding the solar mounts and cable entry cover.

Important note: The solar panel needs a flat area of 1920mm x 1254mm these dimensions include the corner mounts supplied with the kit.

PRODUCT CODE: KIT1350R

450W N-Type TOPCon Bifacial, Dual Glass, Black Frame Solar Module

N-Type technology offering a high-performance product and high-efficiency energy conversion.

KEY FEATURES:

• High module conversion efficiency, up to 22.8%
• N-Type Bifacial Module Black Frame,
• Anodised Aluminium Alloy
• Glass Thickness: 1.6 mm
• Maximum System Voltage: 1,500V
• Better low irradiance performance - Higher power output even under low irradiance environments like on cloudy or foggy days
• Excellent Appearance and Performance - Bifacial solar cell, symmetrical design, low risk of hidden micro-cracks
• High Reliability - 3-fold IEC new standard tests passed
• Double Sided power generation - Bifaciality is up to 80%, up to 30% more energy yield than conventional modules
• Extensive Application Scenes - More extensive application scenes, such as Building-integrated photovoltaics (BIPV), snow field, vertical installation, high humidity, strong wind and desert region
• Extended load tests - Module certified for maximum static test load on the front (5400 Pascal) and maximum static test load on the rear (2400 Pascal) IP68 Rating, 3 bypass diodes
• Standard 25 year product warranty; 30-year performance warranty

SPECIFICATIONS:

• Nominal Max. Power (Pmax/W): 450
• Open Circuit Voltage (Voc/V): 39.18
• Short Circuit Current (Isc/A): 14.68
• Operating Voltage (Vmp/V): 32.47
• Operating Current (Imp/A): 13.86
• Efficiency (%): 22
• Cell Type: N Type
• Module Size: 1800 × 1134 × 30mm
• Glass Thickness:1.6mm
• Module Weight: 21.7Kg
• Output Cable: 4mm² cable length 1200mm (can be customized)
• Connectors: MC4 Series
• Junction Box:  IP68 - 3 bypass diodes
• Frame:  Black Anodized aluminium alloy

PRODUCT CODE: SSD-108ND450

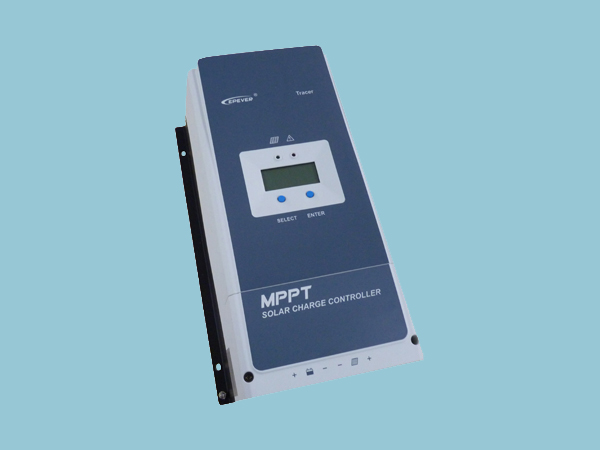

This series of controllers can effectively prolong the life-cycle of batteries, significantly improving the systems performance. The load, utility or generator auto-control relays make it ideal to use with a solar power system and backup generator. All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection this effectively ensure a safe and reliable solar system. The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customers to expand the control parameters. Up to 8 controllers can be in linked in parallel for synchronised charging to meet future system expansions and monitoring requirements.

Features

• CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3).
• High quality & low failure rate components of ST and Infineon to ensure the product’s life.
• Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%.
• Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%.
• Advanced MPPT control algorithm will minimise the MPP loss rate and loss time.
• The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.
• The wider range of MPP operating voltage.
• Auto control system to limit the charging power & current go over the rated value.
• Support 4 charging options: Sealed, Gel, Flooded and User.
• Battery temperature compensation function.
• Real-time energy recording and statistical function.
• Automatic over-temperature power reduction function.
• Hundred percent full load operation in working environment temperature range within charging & discharging
• Support up to 8 units in parallel to expand system
• Load relay control external load switch signal to realise diversified load work modes
• The first and the second disconnection of load control, contain two relay’s contact.
• Auto-control of utility and generator relay design
• Utility or generator auto-control relays make it easy to compose the hybrid power system
• The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
• Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• To monitor or set the parameters by using the phone Apps or PC software.

Specifications

• Nominal System Voltage: 12/24/36/48VDC or Auto
• Battery Input Voltage Range: 8V～68V
• Battery Type: Sealed(Default)/Gel/Flooded/User
• Max Rated Charging Current: 100 amps
• Max Rated Charge Power: 1250W/12V - 2500W/24V - 3750W/36V - 5000W/48V
• Max Input Voltage: 150Vdc
• Max. conversion efficiency: 98.6%
• Full load efficiency: 98%
• Tracking efficiency: ≥99.5%
• Self Consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V
• Grounding: Common negative grounding
• Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
• Ambient temperature range: -25℃～+60℃ (Derate above 45℃)
• Enclosure: IP20

Dimensions: 394×242×143mm

Weight: 7.4kg

PRODUCT CODE: TRACER10415AN
