5460W – 48V Off-Grid Solar Kit with 3kVA RiiO Sun II All-in-One Inverter

The 5460W 48V Off-Grid Solar Kit with RiiO Sun II all-in-one inverter from Sunshine Solar is a high-capacity solar power system designed for properties and applications that need to generate their own electricity. With 12 high-efficiency 455W N-type TOPCon bifacial solar panels, an integrated solar inverter and MPPT charge controller, this kit provides the core components for a substantial off-grid solar installation.

Suitable for remote homes, home offices, summer houses, workshops, static caravans, stables and outbuildings, this 5.46kW solar panel kit is designed for users looking to generate renewable electricity where mains power is unavailable or limited, or where greater energy independence is a priority.

The system uses a 48V battery architecture and a 3kVA RiiO Sun II inverter/charger with built-in MPPT solar charge controller. Essential system cables, connectors, a DC isolator and an E4 LCD monitor are included. Batteries are not included and must be selected separately to suit your energy requirements.

What Is Included in the 5460W Off-Grid Solar Kit?

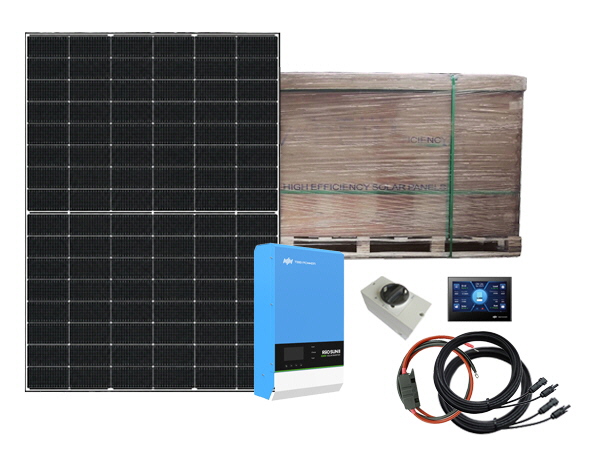

This solar kit includes the main components required to build a 48V off-grid solar power system:

• 12 × 455W N-type TOPCon bifacial solar panels: A combined nominal solar array capacity of 5,460W (5.46kW).
• 1 × RiiO Sun II 3kVA, 48V inverter/charger with MPPT: Combines solar charge control, battery charging and DC-to-AC power conversion in one unit.
• 1 × E4 LCD monitor: Provides local monitoring and control of the compatible inverter system.
• 1 × two-string DC isolator switch: Provides a means of isolating the solar PV circuit for appropriate system operation and maintenance.
• 1 × 10mm² battery cable and 100A fuse kit: For the battery connection, subject to the manufacturer's installation requirements.
• 2 × 10m extension cables and connectors: For connecting the solar panels to the system.

Please note: Batteries, panel mounting equipment and any additional installation materials not listed in the kit contents are not included. Check the full specification and installation requirements before ordering.

High-Efficiency 455W N-Type TOPCon Bifacial Solar Panels

The kit includes 12 Sungrow 455W N-type TOPCon bifacial solar modules, providing a combined rated array output of 5.46kW. N-type TOPCon technology is designed to deliver efficient solar power generation, while the bifacial construction allows the panels to capture sunlight from both the front and rear surfaces when the installation and surrounding surfaces allow useful reflected light to reach the rear.

Key solar panel features include:

• 455W rated output per panel.
• 5,460W total nominal solar array capacity.
• N-type TOPCon bifacial cell technology.
• Black frame and dual-glass construction.
• Up to 22.8% stated module efficiency.
• IP68-rated junction box.
• 25-year product warranty and 30-year linear performance warranty, as specified for the panel model.

Actual energy production depends on the installation location, roof or ground orientation, tilt angle, shading, weather, temperature and the amount of light reaching the panels. Bifacial gains also depend on the mounting arrangement and ground or roof reflectivity.

RiiO Sun II 3kVA All-in-One Solar Inverter and MPPT Controller

At the heart of the system is the RiiO Sun II 3kVA 48V inverter/charger. It combines several functions in one unit, helping simplify the design of a compatible off-grid solar installation.

The integrated equipment includes:

• A pure sine wave inverter for converting battery DC power into AC electricity.
• An MPPT solar charge controller to regulate solar panel power.
• A battery charger for compatible charging sources.
• An automatic transfer switch for supported AC input arrangements.
• A user-friendly display interface and supported remote monitoring options.

The RiiO Sun II is designed for off-grid, energy storage and selected backup-power applications. Its suitability for a particular installation depends on the connected loads, battery configuration, PV array limits and installation requirements.

Important: The solar array is rated at 5.46kW, while the inverter is rated at 3kVA. These figures describe different parts of the system: the panel rating is the nominal DC solar array capacity, whereas the inverter rating relates to its AC power output. The inverter does not provide 5.46kW of AC output simply because the solar panels have that combined rating. Confirm the inverter's permitted PV input specifications and expected simultaneous loads before installation.

E4 LCD Monitor for System Monitoring

The included E4 LCD monitor provides a local interface for monitoring and controlling the compatible RiiO Sun II system. The inverter also supports compatible remote monitoring options, subject to the required connectivity, configuration and manufacturer software.

Monitoring helps users understand system operation, solar charging and power use, making it easier to manage an off-grid installation.

Expected Solar Performance

Sunshine Solar lists an indicative summer performance figure of approximately 455Ah per day on a 48V system for this kit. This is an estimate rather than a guaranteed daily output. Actual performance varies with seasonal daylight, weather, installation angle, shading, system losses and battery charging conditions.

Amp-hours (Ah) describe electrical charge at a particular voltage, so this figure should not be treated as a fixed number of kilowatt-hours available to run appliances. To estimate usable energy, the battery voltage, battery capacity, conversion losses and system operating conditions must also be considered.

For a more accurate estimate, assess the expected daily electricity consumption in kWh, the location of the installation and the battery storage required for periods of low solar generation.

A Suitable Solar Kit for Off-Grid Properties and Outbuildings

This 5460W off-grid solar kit may suit a range of installations, including:

• Remote homes and cabins: Generate solar electricity where connection to the mains grid is difficult or unavailable.
• Workshops and home offices: Supply solar energy for compatible equipment, lighting and everyday electrical needs, within the inverter's output limits.
• Summer houses and garden buildings: Develop an independent power system for seasonal or occasional use.
• Stables, farms and outbuildings: Provide a potential solar power solution for suitably designed electrical loads.
• Static caravans and remote leisure properties: Generate electricity where a correctly designed off-grid system is appropriate.
• Backup-power projects: Form part of a wider system designed to supply selected loads during interruptions, where the full installation supports this use.

The system's suitability depends on the appliances being powered, their starting surges, daily energy consumption, available battery storage and whether additional power sources are required.

Choosing a Compatible 48V Battery

Batteries are not included with this kit. A compatible 48V battery bank is required for conventional battery-based off-grid operation. The battery should be selected according to the required energy storage, expected daily consumption, desired autonomy and the inverter manufacturer's compatibility requirements.

Sunshine Solar lists the TBB ES100 48V 105Ah LiFePO4 lithium battery as an option to consider. For a system of this size, the required battery capacity should be calculated carefully rather than selected on voltage alone. Confirm the recommended battery configuration, maximum charge and discharge currents, communication compatibility and any required battery protection or balancing equipment before purchasing.

You should also consider whether your installation needs enough stored energy to operate overnight or through several cloudy days. A larger solar array does not, by itself, guarantee that sufficient electricity will be available at every time of day.

Why Choose Sunshine Solar?

Sunshine Solar has over 20 years of experience in the solar industry, supplying solar panels, off-grid solar kits, batteries, inverters and renewable energy accessories.

We pride ourselves on providing excellent customer support over the phone, with friendly, practical advice to help customers choose equipment that suits their installation. If you are unsure which battery to pair with this 48V solar kit, how much storage you need or whether the inverter is suitable for your appliances, contact our team before ordering.

Order the 5460W 48V Off-Grid Solar Kit

The Sunshine Solar 5460W 48V Off-Grid Solar Kit with RiiO Sun II 3kVA All-in-One Inverter combines a 5.46kW bifacial solar array with integrated solar charging and inverter functions. It is designed for off-grid projects where substantial solar generation is required, with battery storage selected separately to match the installation.

Explore the product specifications above and contact Sunshine Solar for help choosing compatible batteries and planning a system around your energy requirements.
