How Anti-Shade Solar Panels Work
Solar panels perform best when their cells receive consistent, unobstructed sunlight. However, in real-world installations, partial shading is often unavoidable. Trees, buildings, roof structures, antennas, air-conditioning units, railings, leaves, dirt and even bird droppings can cover part of a solar panel and significantly reduce its power output.
Traditional solar panels are commonly arranged with multiple solar cells connected in series. This means that when one section of the panel becomes shaded, the affected cell or cell group can restrict the current flowing through the wider circuit. As a result, a relatively small shaded area can cause a disproportionately large reduction in the panel's output. Partial shading can also create localised heat, known as a hot spot, which can place additional stress on the solar cells and potentially contribute to long-term degradation.
Cell-Level Shadow Management
Anti-shade solar panels address this problem by managing the effects of shading at a much more localised level.
Anti-shading technology uses cell-level shadow management to reduce the amount of power lost when only part of a panel is shaded. Rather than allowing a shaded section to disproportionately affect the performance of the entire module, the panel's electrical architecture helps isolate the shaded area and allows unaffected cells to continue contributing to power generation.

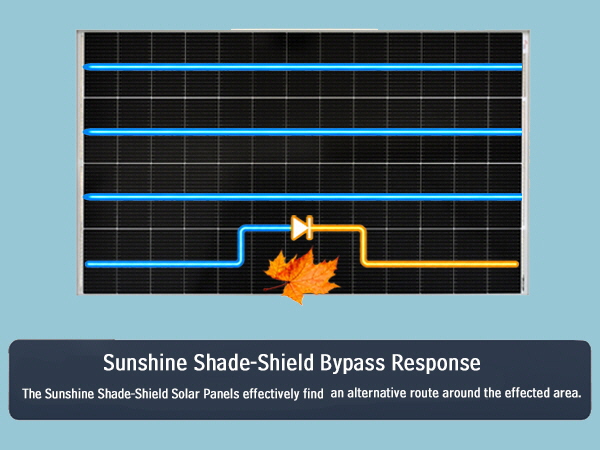

A key part of this approach is the use of bypass technology. Bypass components provide an alternative electrical path when a cell or group of cells is heavily shaded. Under normal sunlight, the bypass path is inactive. When shading occurs, it can redirect current around the affected section, helping prevent the shaded cells from becoming a major restriction on the rest of the panel. The Shade-Shield Series doesn't just relies on conventional bypassing: the cell-level design is intended to localise shading-related losses and maintain more stable output under uneven lighting conditions.
Reducing the Hot-Spot Effect
One of the important advantages of managing shading at cell level is improved protection against hot spots.
When a solar cell is heavily shaded while surrounding cells continue producing electricity, the shaded cell can behave differently from illuminated cells and may experience increased electrical and thermal stress. Over time, this can contribute to cell degradation, micro-cracking and reduced module reliability. Shade-Shield anti-shading and anti-hot-spot design is intended to reduce these localised heating effects. By providing an alternative route for current and controlling the impact of shaded sections, the technology helps protect the module while allowing unaffected areas to continue producing energy.
Key Benefits of Anti-Shade Solar Panels
1. Higher Energy Output in Partial Shade -The primary benefit is improved energy production when a solar installation cannot receive uniform sunlight.
Instead of allowing a relatively small shaded area to cause a major reduction across the panel or connected string, cell-level shade management helps confine the impact to the affected area. This can be particularly valuable where shading changes throughout the day as the sun moves across the sky.
2. Better Performance in Difficult Installation - Locations
Anti-shade panels are particularly useful where avoiding shade completely is impractical.
Potential applications include:
RV and motorhome roofs with air-conditioning units, vents or roof accessories
Buildings surrounded by trees or neighbouring structures
Balconies affected by railings or adjacent buildings
Marine applications where equipment or structures can cast moving shadows
Off-grid installations in wooded or uneven environments
Rooftops with complex layouts and multiple obstructions, balcony and other space-constrained applications where partial shading is a realistic operating condition.
3. Reduced Risk of Hot Spots - By controlling the electrical effect of shaded cells, anti-shade technology can reduce the conditions that contribute to hot-spot formation.
This is important because repeated localised overheating can place stress on solar cells and other module materials. Reducing these effects can help improve the long-term reliability of the panel.
4. More Stable Power Generation - Conventional solar panels can experience significant fluctuations when shadows move across the array. Anti-shading technology is designed to make the panel less sensitive to these local changes in illumination.
For applications such as RVs, where the vehicle may move between sunny and shaded locations, this can help maintain more consistent solar generation and battery charging throughout the day.
5. Better Use of Available Roof Space - For many installations, the ideal solution would be to position every panel in completely unobstructed sunlight. In practice, this is not always possible.
Anti-shade technology gives system designers greater flexibility because panels can operate more effectively in locations where occasional or unavoidable shading exists. This can be particularly valuable on smaller roofs, RVs, balconies and other installations where every available square metre matters.
6. Improved Long-Term Reliability - Hot spots and repeated thermal stress can contribute to degradation over time. By reducing the electrical and thermal impact of shaded cells, the Shade-Shield technology is designed to support longer-term module stability and reliability.
How Anti-Shade Panels Differ From Conventional Solar Panels
The easiest way to understand the difference is to think of a conventional solar panel as a system in which shading can create a bottleneck.
If one part of a conventional panel is significantly shaded, the affected cell or cell group can restrict current flow through the connected circuit. Bypass diodes can help mitigate this problem, but conventional designs may still experience substantial losses depending on the location and severity of the shade.
Anti-shade technology takes the concept further by using more localised cell-level management. Instead of treating a large section of the panel as one electrical unit, the design aims to minimise the area affected by shading and allow the remaining cells to continue generating electricity.
In simple terms:
Traditional panel:
Shade on one section → electrical bottleneck → greater power loss → potential hot-spot stress.
Anti-shade panel:
Shade on one section → affected area is managed/bypassed → remaining cells continue operating → lower overall power loss and reduced hot-spot risk.
Shade-Shield series with anti-shading architecture uses multiple bypass zones and smaller diode-controlled groups to provide more precise protection than a conventional arrangement.
Why Anti-Shade Technology Matters
Shading is one of the most difficult variables to eliminate from a real-world solar installation. Even a carefully designed system can experience shadows at different times of the day as the sun changes position.
This makes anti-shade technology particularly valuable for installations where consistent sunlight cannot be guaranteed. Instead of designing a system around perfect laboratory conditions, the technology is designed to maintain better performance under the changing and imperfect lighting conditions found in everyday use.
For RVs, balconies, rooftops, marine installations and off-grid systems, this can translate into more usable energy, more stable charging, better utilisation of limited installation space and improved protection against shading-related hot spots.
In Summary
Shade-Shield anti-shade solar panels use cell-level shadow management and advanced bypass architecture to reduce the impact of partial shading. When part of a panel is covered by a shadow, the technology helps isolate or bypass the affected section so that the remaining cells can continue producing electricity.
The main advantages are:
- Higher energy yield under partial shading
- Reduced power losses caused by localised shadows
- Lower risk of hot spots and thermal stress
- More stable energy production
- Greater flexibility when choosing installation locations
- Better utilisation of limited roof or mounting space
- Improved long-term module reliability
The technology is therefore particularly suited to installations where shade is unavoidable rather than exceptional—such as RV roofs, balconies, rooftops with obstructions, marine environments and off-grid locations.
