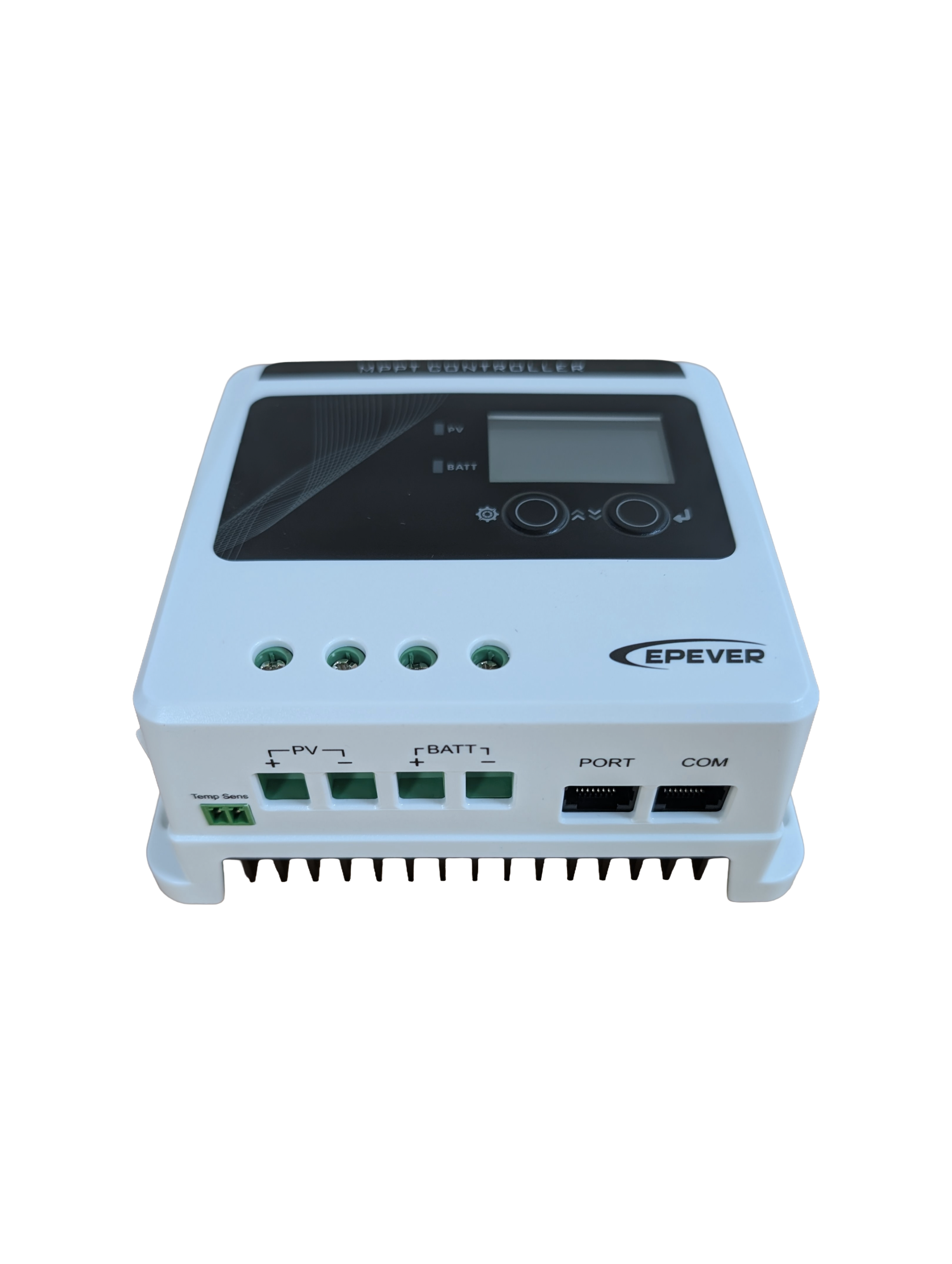

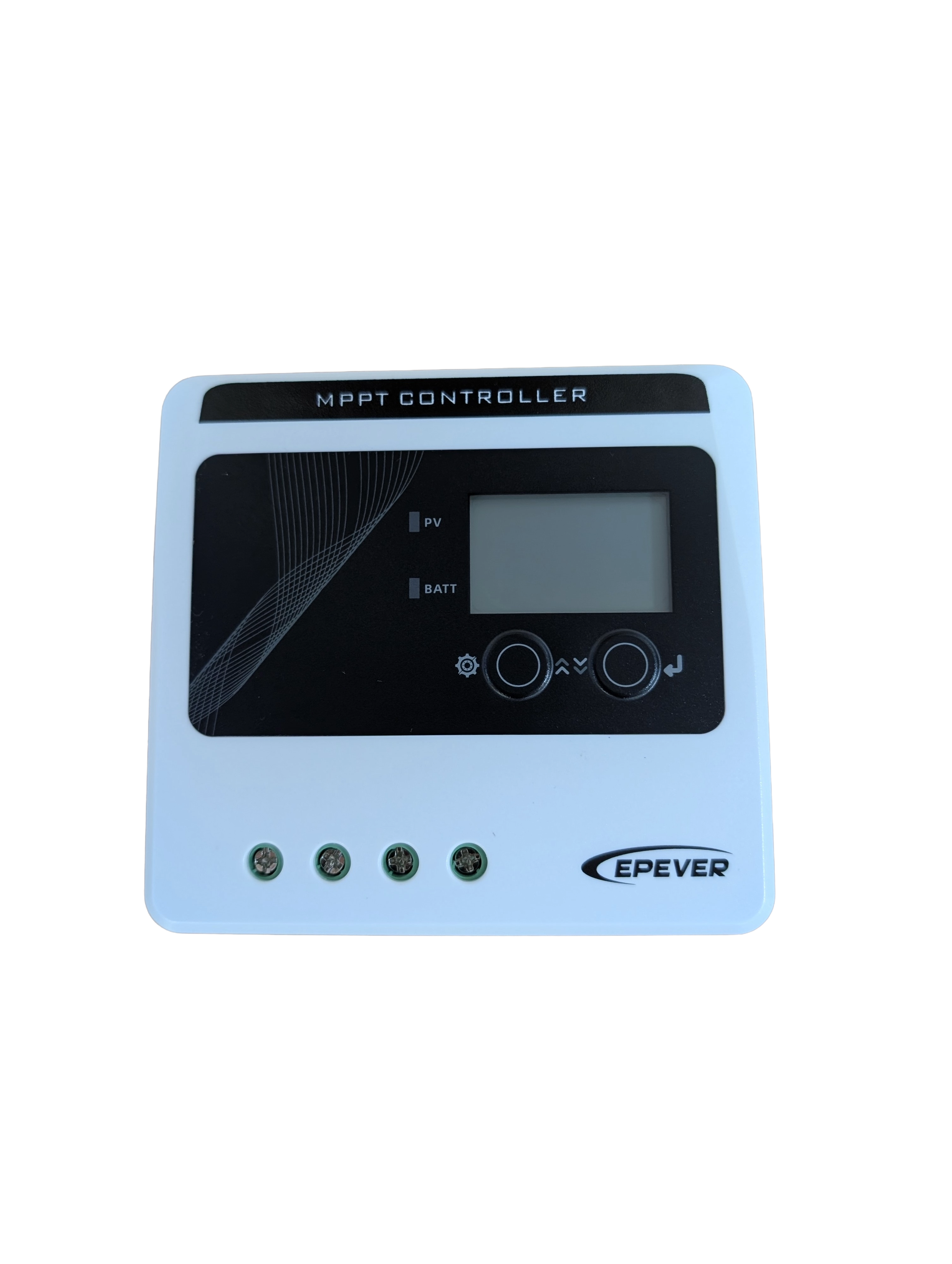

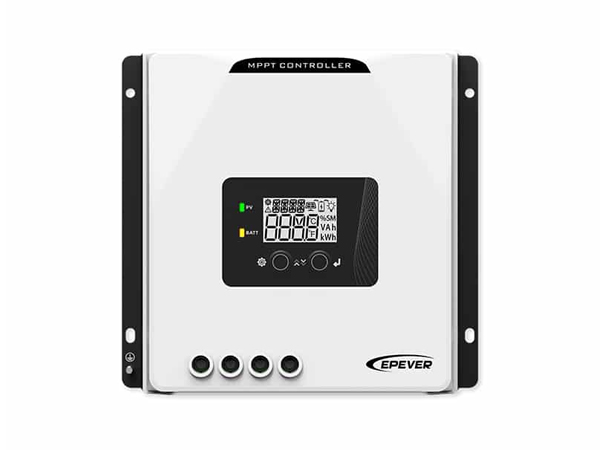

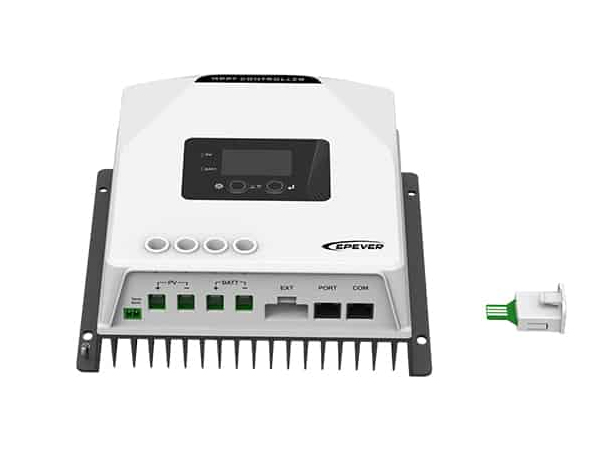

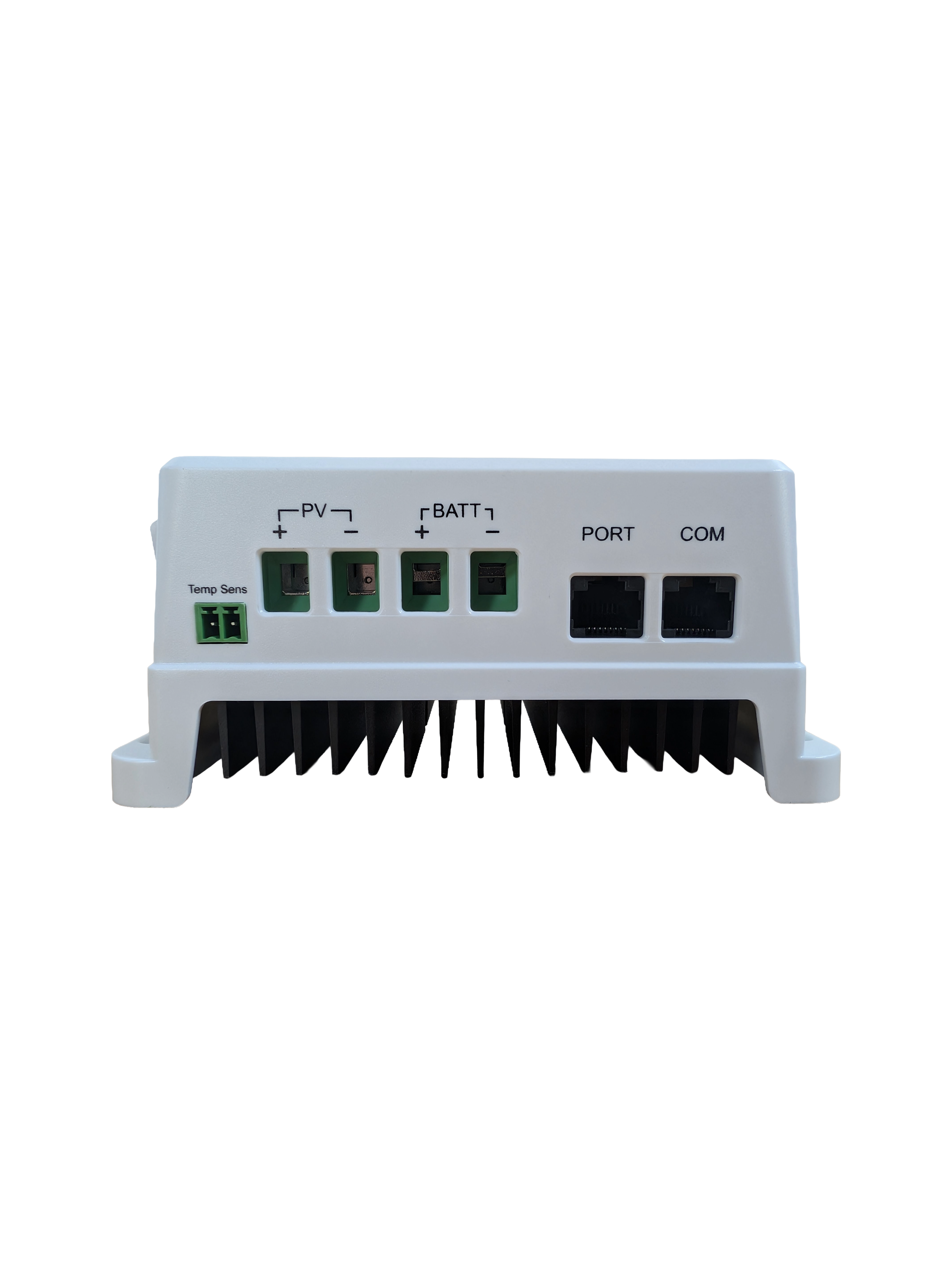

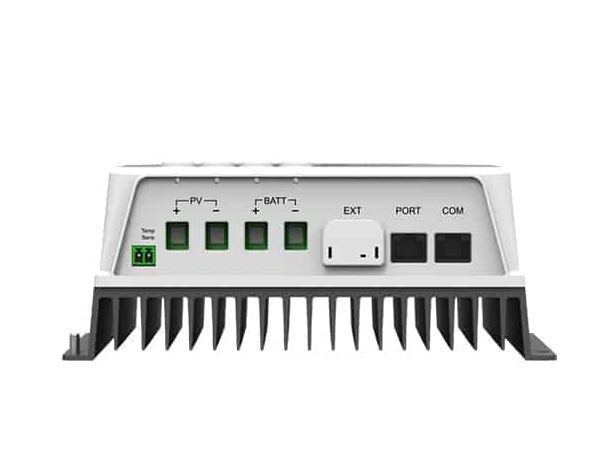

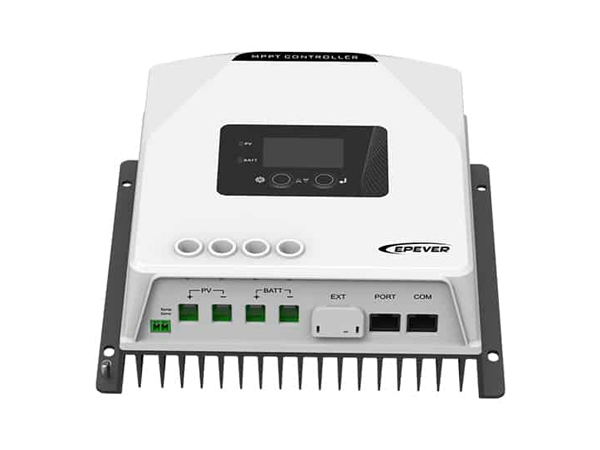

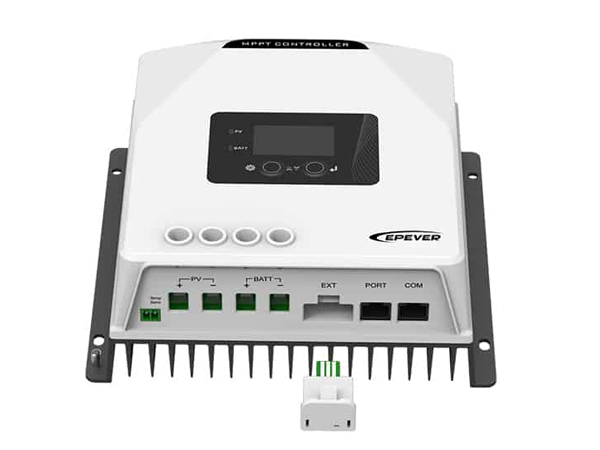

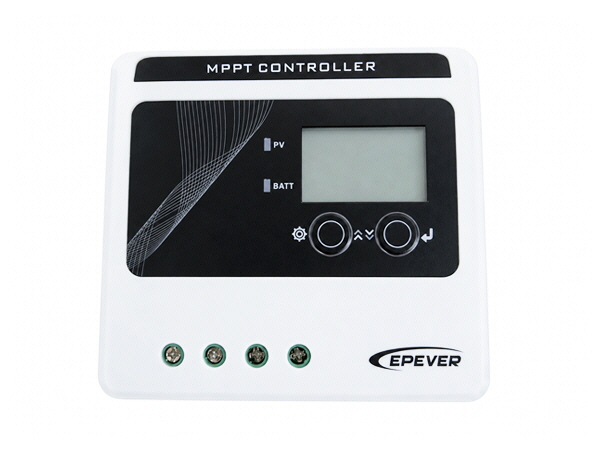

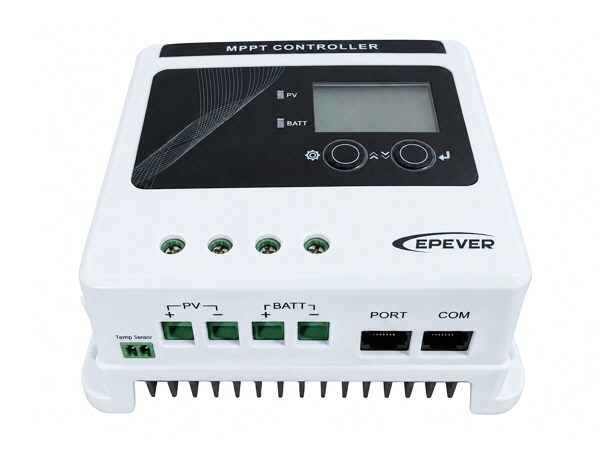

20A -60V MPPT Charge Controller - TRC Series
TRC2206-BLE -RV MPPT Charge Controller from EPEVER TRC Series is engineered for reliable solar charging in RV and off-grid power systems. It adopts an advanced MPPT control algorithm to improve tracking performance, with maximum tracking efficiency of no less than 99.5% and conversion efficiency up to 98.5%, helping maximize energy harvest from solar panels.
RV MPPT Charge Controller from EPEVER TRC Series is engineered for reliable solar charging in RV and off-grid power systems. It adopts an advanced MPPT control algorithm to improve tracking performance, with maximum tracking efficiency of no less than 99.5% and conversion efficiency up to 98.5%, helping maximize energy harvest from solar panels. This controller supports multiple battery types, including lithium batteries, and provides self-activation for lithium batteries to enable smoother start-up and stable charging performance.
For monitoring and system integration, the TRC series includes RS485 communication and can be connected with optional 4G or WiFi modules for remote monitoring when needed. With low static power consumption and comprehensive electronic protections, this RV MPPT Charge Controller is a practical choice for RV solar charging, household off-grid systems, and field monitoring applications. Clear installation guidance is provided, including recommended wiring sequence and safety precautions to support long-term system reliability.
Specifications
- Max Rated Charging Current: 20 amps
- Max Rated Load Current: 20 amps
- Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V
- Max Input Voltage: 60Vdc
- MPPT Efficiency: 98.6%
- System Voltage: 12V/24V Auto-set
- Working Temperature: -30° to +60°
- Battery Selection: Gel, Sealed, Flooded, Lithium-ion
- Enclosure: IP20
Weight: 0.59kg
PRODUCT CODE: TRC2206-BLE
