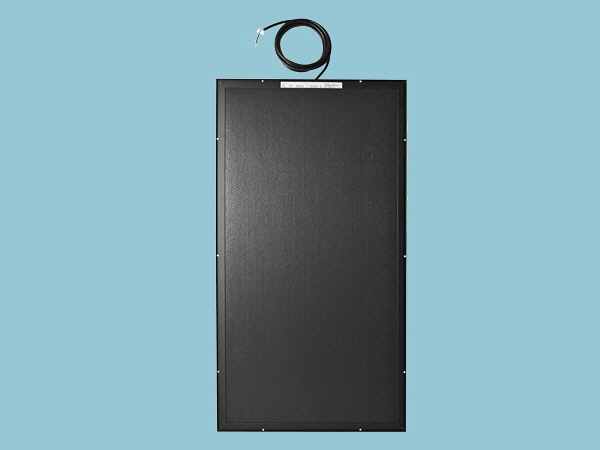

135W Sunshine Lightweight Solar Panel - Glass Free

The SRGH135 is a glass free monocrystalline solar module fitted into a black aluminium frame. Only weighing approximately half that of a rigid glass solar panel, makes it perfect where weight restrictions are required. The high strength design and impact resistance prevents deformation caused by heat and load and defends against hail, whilst the innovative super insulation and honeycomb structure enhances heat dissipation and energy conversion efficiency.

WEEKLY SPECIAL ....... ENDS 17TH JULY 2024

Item Number:
SRGH135
Your Price:
£189.00 £169.00 (Save 11%)
Points:
51 Worth £2.55
Your Total:
Quantity:

Often Purchased Together

10A MPPT Controller Xtra Series built-in Bluetooth
10A MPPT Controller Xtra Series built-in Bluetooth
£69.79 | 31 Points
DuoRacer Dual Battery MPPT Solar Charge Controller 10A 12/24V
DuoRacer Dual Battery MPPT Solar Charge Controller 10A 12/24V
£71.49 | 29 Points
4mm² - Battery to Controller Cables & Fuse Kit -  10,20A
4mm² - Battery to Controller Cables & Fuse Kit - 10,20A
19.95
£17.95 | 10 Points
4mm² - Battery to Dual Controller Cables & Fuse Kit - 10,20,30A
4mm² - Battery to Dual Controller Cables & Fuse Kit - 10,20,30A
39.90
£35.91 | 10 Points
ABS Waterproof Cable Entry Cover Single Gland
ABS Waterproof Cable Entry Cover Single Gland
£9.95 | 8 Points
Bostik-360 Fixing Adhesive
Bostik-360 Fixing Adhesive
14.99
£13.49 | 7 Points
Description

With this Sunshine 135W solar panel you could expect to generate around 32 amps per day when used in conjunction with a PWM solar charge controller and around 45 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.


Specifications

  • Product Code. SRGH135
  • Max Power. 135W 3%
  • Max Power Voltage. 20.9V
  • Max Power Current. 6.46A
  • Open Circuit Voltage. 24.5V
  • Short Circuit Current. 6.78A
  • Normal Operating Cell Temp. -20 to 75C
  • Max System Voltage. DC1000V
  • Dimensions. 1275 x 620 x 11mm
  • Weight. 3.70kg

Features

  • 3m of twin-core insulated cable
  • High Performance Monocrystalline Cells
  • Factory fitted aluminium frame with pre-drilled mounting holes
  • Multiple pieces can be connected to acquire higher power
  • Suitable for charging all types of 12 volt batteries
  • Fitted with bypass diode
  • Completely weatherproof

Guaranteed Performance

  • 10 Years Warranty
  • 20 Years Service Life

Suitable Solar Charge Controllers

  • PWM Solar Controller 10A - 12/24V
  • Dual Battery Controller 10A - 12/24V
  • MPPT Single Solar Controller 10A - 12/24V (10% - 30% more power generation)
  • MPPT Dual Solar Controller 10A - 12/24V (10% - 30% more power generation)

Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 2 for Technical.

Save Money.....on a selection of Add-on items when you purchase them with this product.



PRODUCT CODE: SRGH135
