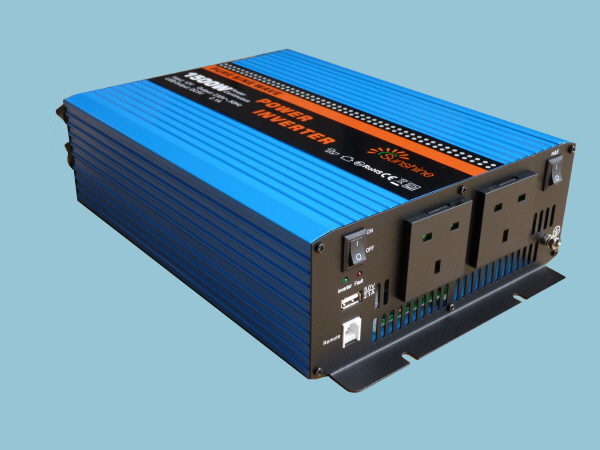

1500W - 12V Pure Sine Wave Sunshine Power Inverter
Sunshine Pure Sine Wave Inverters are suited for sensitive electronic equipment, allowing motors to run faster, quieter and cooler, preventing computer crashes, noises & glitches in monitors, TV, game consoles etc. Convert DC power from your battery into AC power enabling use of electrical devices. Connect the inverter to your battery, and plug your AC devices into the power inverter to provide a reliable power source whilst on the move. Perfect for caravans, motorhomes, boats & trucks.
Fitted with an RCD Compatibility Switch.
1500W 12V Pure Sine Wave Sunshine Power Inverter – 230V AC Power for Caravans, Motorhomes and Off-Grid Systems
Product Overview
The Sunshine Solar 1500W 12V Pure Sine Wave Power Inverter (VP1500) converts 12V DC electricity from a compatible battery into 230V AC mains-style electricity, allowing you to power suitable electrical appliances when a conventional mains connection is unavailable.
Designed for mobile power and off-grid applications, this 1500W pure sine wave inverter is suitable for use in caravans, motorhomes, campervans, boats, trucks, vehicles and appropriately designed off-grid solar systems. Its pure sine wave output provides a smooth, consistent AC waveform suitable for many sensitive electronic devices and compatible electrical equipment.
With a 1500W continuous power rating and 3000W peak surge rating, the Sunshine VP1500 can support a range of compatible appliances, provided their running power and start-up requirements remain within the inverter's limits. Features include dual UK AC outlets, a USB port, soft start, switchable RCD compatibility and multiple built-in protection functions.
Key Features and Benefits
- 1500W continuous output: Supplies AC power to compatible appliances within the inverter's rated capacity.
- 3000W surge power: Provides additional short-duration power for suitable start-up loads, subject to the manufacturer's specifications.
- 12V DC battery input: Designed for compatible 12V battery systems.
- Pure sine wave output: Provides a smooth AC waveform suitable for many electronic devices and appliances.
- 230V AC output at 50Hz: Suitable for compatible UK electrical equipment.
- Dual UK AC outlets: Allows compatible appliances to be connected directly to the inverter.
- USB port: Provides a convenient connection for compatible USB-powered devices.
- Soft-start function: Helps manage the initial start-up of compatible equipment.
- Switchable RCD compatibility: Supports an appropriate RCD protection arrangement when correctly configured and installed.
- Built-in safety protection: Includes protection against overheating, low and high battery voltage, overload, short circuits and reverse polarity.
- Battery connection cables included: Supplied with battery cables; the standard cable option is listed as four 700mm cables.

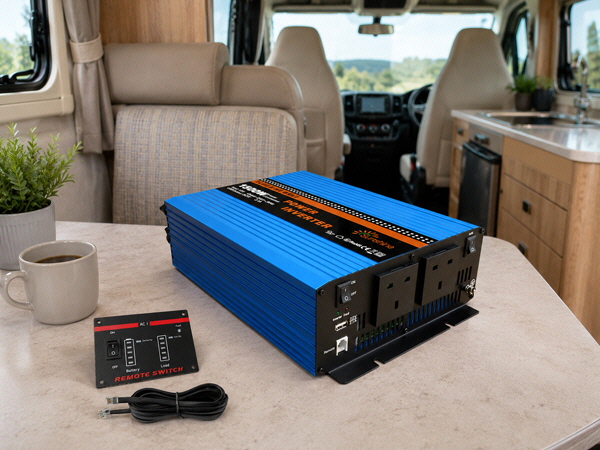

- Optional remote on/off switch: Provides a convenient way to control the inverter when installed in a less accessible location.
What Is a Pure Sine Wave Inverter?
A pure sine wave inverter converts the DC electricity stored in a battery into AC electricity with a smooth waveform similar to the type of supply used by conventional mains-powered equipment.
Compared with a modified sine wave inverter, a pure sine wave model is generally a better choice for sensitive electronics and equipment containing motors, transformers or electronic power supplies. It can help reduce unwanted electrical noise and support smoother operation in compatible devices.
The Sunshine Solar VP1500 is designed for users who need a 12V battery-powered inverter capable of supplying 230V AC electricity to suitable appliances in mobile, leisure and off-grid environments.
Always check the requirements of the appliance manufacturer before connecting sensitive or high-demand equipment.
How Does the Sunshine Solar 1500W Inverter Work?
The inverter takes DC electricity from a compatible 12V battery and converts it into 230V AC electricity. Appliances can then be connected to the inverter's UK AC outlets, provided their power requirements are within the inverter's continuous and surge ratings.
For example, it may be suitable for powering compatible laptops, televisions, chargers, lighting and selected small appliances. Whether a particular appliance can be operated depends on its rated consumption, start-up current and the condition and capacity of the battery.
The inverter does not generate electricity by itself. It draws energy from the connected battery, which must be recharged using a suitable source, such as a compatible solar charging system, vehicle charging arrangement or battery charger.
Where Can the 1500W 12V Pure Sine Wave Inverter Be Used?
Caravans and Motorhomes
Use a compatible leisure battery to supply 230V AC power for selected appliances while travelling or staying away from mains hook-up facilities. Check that the battery, wiring and inverter capacity are suitable for the appliances you intend to run.
Campervans and Vehicles
The VP1500 can be considered for appropriately installed mobile power systems. The inverter must be connected to a suitable battery using correctly sized cables and suitable overcurrent protection. Do not assume a standard vehicle accessory socket can supply the inverter's full rated power.
Boats and Marine Applications
A compatible 12V battery system can supply inverter power for selected onboard equipment. Installation must account for the marine environment, ventilation, battery safety and applicable electrical standards.
Trucks and Commercial Vehicles
The inverter can provide AC power for compatible equipment where a properly designed 12V battery supply is available. Check battery capacity and alternator charging capability before relying on the inverter for extended periods.
Off-Grid Solar Systems
The Sunshine Solar VP1500 can be used as part of a suitable 12V off-grid solar installation. Solar panels, a compatible charge controller and a correctly sized battery bank can replenish the energy used by connected appliances.
Technical Specifications
| Product name | Sunshine Solar 1500W Pure Sine Wave Power Inverter |
|---|---|
| Product code | VP1500 |
| Continuous rated power | 1500W |
| Peak surge power | 3000W |
| DC input voltage | 12V nominal |
| Listed input range | 10–15V DC |
| AC output voltage | 230V |
| Output frequency | 50Hz |
| Output waveform | Pure sine wave |
| Listed efficiency | Greater than 85% |
| AC outlets | Dual UK outlets |
| USB port | Yes |
| Soft start | Yes |
| RCD compatibility | Switchable RCD compatibility |
| Protection features | Over-temperature, low battery voltage, high battery voltage, overload, short circuit and reverse polarity |
| Standard battery cables | Four 700mm cables, 10mm˛, as listed |
| Dimensions | 330 × 220 × 90mm |
| Weight | 4.1kg |
| Certifications listed | CE-EMC/LVD, RoHS and E-Mark |
Specifications are based on the published VP1500 product information. Confirm the current datasheet and supplied accessories before installation.
Battery Capacity and Power Consumption
The battery capacity required for the Sunshine Solar 1500W inverter depends on the appliances being used, how long they operate and the battery chemistry.
At its full 1500W output, a 12V inverter can draw well over 100A from the battery once conversion losses are taken into account. This makes correctly sized battery cables, suitable fusing and a battery capable of supplying the required current essential.
For longer operating times, choose a battery bank with sufficient usable capacity and a suitable charging source. Avoid routinely discharging a battery beyond the limits recommended by its manufacturer.
The inverter's 3000W surge rating is intended for short-duration demands, not continuous operation at 3000W. Some appliances have particularly high start-up currents, so check their requirements before use.
Safety and Installation Information
For safe and reliable operation:
- Connect the inverter only to a compatible 12V DC battery system.
- Use correctly rated battery cables, connections and overcurrent protection.
- Install the inverter in a dry, adequately ventilated location and follow the manufacturer's clearance requirements.
- Keep the inverter away from excessive heat, moisture and combustible materials.
- Check the power rating and start-up requirements of every appliance before connecting it.
- Follow the manufacturer's instructions for earthing, neutral arrangements and RCD protection.
- Never connect the inverter's AC output directly to a building's wiring or a mains supply without an approved changeover arrangement and a compliant installation.
- Have fixed AC wiring and any mains integration installed by a suitably qualified professional.
The switchable RCD compatibility feature does not, by itself, guarantee protection in every installation. Correct wiring and earthing arrangements are essential.
Before purchasing, check your appliances' power requirements, battery capacity, cable requirements and installation arrangements to ensure the VP1500 is suitable for your application.
Why Choose Sunshine Solar?
Sunshine Solar has over 20 years of experience in the solar industry, supplying solar panels, battery storage, inverters, off-grid solar kits and renewable energy accessories.
We pride ourselves on providing excellent customer support over the phone, with friendly, practical advice to help customers select suitable equipment for their needs.
Whether you need help understanding the difference between inverter ratings, choosing a battery system or assessing whether a solar kit is appropriate for your property, our team can help you make a more informed purchasing decision.
PRODUCT CODE: VP1500
