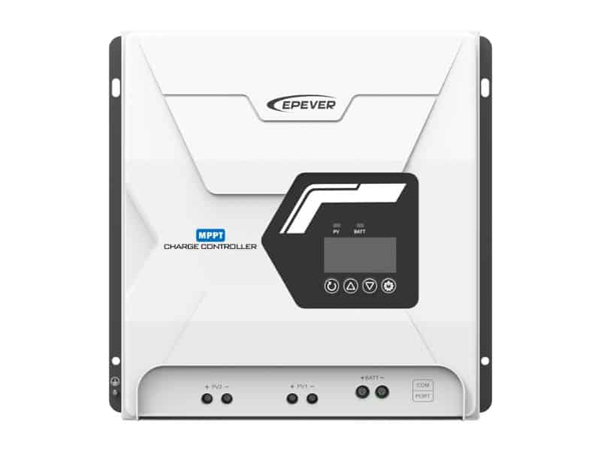

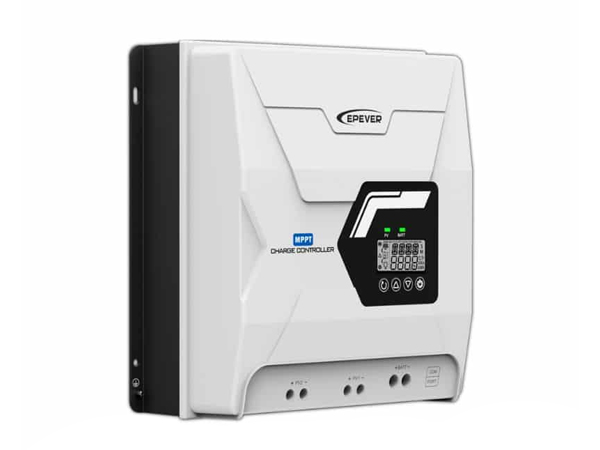

60A-150V MPPT Controller - TES Series

The TES series dual PV input controller is built for users who want more freedom in PV design without sacrificing charging performance. With two PV input channels on selected models, you can connect separate solar strings for better layout flexibility, or combine inputs to scale PV capacity within safe limits. This makes the controller a strong fit for RV systems, cabins, monitoring sites, and modular off grid power setups where roof space or panel orientation is not uniform.

At the core, TES uses high efficiency MPPT tracking to maximize energy harvest across changing sunlight conditions. It automatically adapts to 12V 24V or 48V battery systems and provides multiple current options from 60A up to 100A, allowing you to match the controller to both compact and higher demand installations. High PV voltage input designs support longer strings, helping reduce wiring loss and simplify system layout.

TES is also designed for modern battery choices. It works smoothly with lithium batteries and lead acid batteries, and supports BMS communication on compatible lithium packs for more accurate charging control. When batteries are unavailable or temporarily disconnected, the controller can operate in no battery mode, supplying power directly from PV when sunlight is sufficient. For growing systems, parallel connection of up to 6 controllers is supported, making future expansion straightforward.

With isolated RS485 communication, optional Wi-Fi or 4G monitoring modules, and clear LCD local settings, TES helps users monitor system status, review energy records, and keep performance stable over time. The result is a dual PV input controller that supports flexible solar growth, dependable battery charging, and practical off grid operation.

PV Input (DC)

• Max. Open-circuit Voltage 150V(@ lowest temperature), 135V(@25℃)
• MPPT Voltage Range (Battery voltage plus 2V, and>20V) to108V(@25℃)
• Number of MPPTs 1

• AGM(Default) / GEL / FLD/ User
• Lithium Battery Type LFP / NCM / User
• Rated Voltage 12/24/48VDC or Auto
• Rated Charging Current 60A
• Rated Charging Power 780W/ 1560W/ 3120W
• Temperature Compensate Coefficient －3mV/℃/2V(Default)

• Output Voltage Range 8V～62V
• Static Loss (Enabled Communication) 98mA/12V, 60mA/24V, 46mA/48V
• Static Loss (Disabled Communication) 48mA/12V, 25mA/24V, 14mA/48V
• Grounding Common negative grounding
• Communication Method 5VDC/200mA(RJ45)

• Tracking Efficiency ≥99.5%
• Max. Conversion Efficiency 98.30%

• Operating Temperature -25℃ to +60℃
• Storage Temperature -30℃ to +70℃
• Relative Humidity 5%～95% (N.C.)
• Altitude ＜5,000m (＞2,000m Derating)
• Ingress Protection IP32

• Dimensions (L x W x H)(mm) 270 x 305 x 91
• Mounting Dimensions (L x W)(mm) Φ6.5
• Weight (Kg) 3.85
• Recommended Cable Size 6AWG/16mm˛

• EN/IEC61000-6-2; EN/IEC61000-6-4; EN/IEC62109-1; IEC 62109-1; IEC 62321

PRODUCT CODE:TES6415
