35W Sunshine Solar Flexible ETFE Kit

This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.

The Sunshine Flexible Solar range benefit from being thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and a 3° solar panel flexibility for fitting on slightly curved surfaces our flexible solar range are perfect for caravans, motorhomes and campers.

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

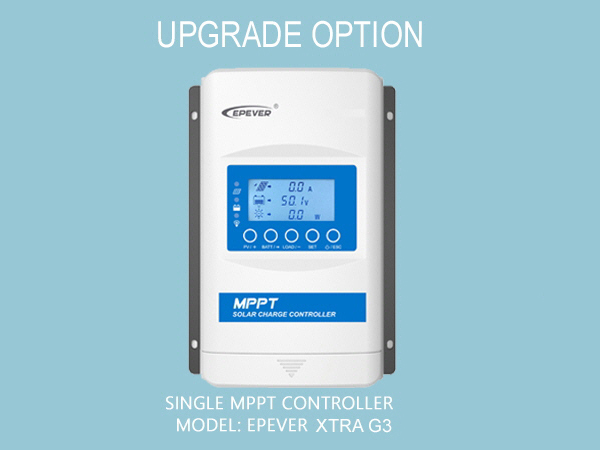

Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades.

Kit Performance - Summertime

• Standard Controller: 9.7Ah per day - (10-30% more with MPPT Controller)

If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.

SAVE MONEY - Don't forget you can save money on add-ons to compliment your solar kit. A Remote Meter or Bluetooth Adapter will give valuable real-time data on the overall performance of your kit. Bostik-360 Fixing Adhesive recommended for bonding the solar panel and cable entry cover.

Solar Panel Specifications

• Brand. Sunshine Solar
• Maximum Power (Pmax): 35W
• Maximum Power Current (Ipm): 1.94A
• Maximum Power Voltage (Vpm): 18V
• Short Circuit Current (Isc): 2.09A
• Open Circuit Voltage (Voc): 21.6V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC300V
• Size: 560 x 370 x 4mm
• Weight: 1.2kg

Features

• 3° flexibility or 3cm per 1m of panel length
• ETFE rough scratch resistant surface which can be walked on in deck shoes.
• Aluminium Substrate
• Highly efficient monocrystalline cells
• Can be conveniently placed on slightly curved solid surfaces
• Can be easily bonded using fixing adhesive (no need for drilling)
• 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
• 5 Year Manufacturers Warranty


PRODUCT CODE: SFB35A

The Epever Triron Controllers can effectively prolong the lifecycle of batteries, significantly improve the system performance and gives all-round electronic protection, including overcharging and over-discharge protection to minimise damage to system components caused by incorrect installation or system failure, this effectively ensures a safer and more reliable solar power system.

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Features

• MPPT function
• Bluetooth (Bluetooth Adapter required)
• Compatible with lead acid & lithium-ion batteries
• 5VDC dual USB outputs
• Built in display
• Optional 2m wired remote display
• Microprocessor controller pulse width modulation (PWM) charging
• Overload protection
• Overcharge protection
• Short circuit protection
• Lightning protection
• Reverse discharge protection
• Reverse polarity connection protection
• Under voltage protection
• Rated battery voltage 12/24vdc
• RJ45 communication port for optional remote meter

Specifications

• Max Rated Charging Current: 10 amps
• Max Rated Load Current: 10 amps
• Rated Solar Charge Power: 130 Watts @ 12V - 260 Watts @ 24V
• Max Input Voltage: 60Vdc
• MPPT Efficiency: 99.5%
• Self Consumption: ≤14mA/12V - ≤15mA/12V
• System Voltage: 12V/24V Auto-set
• Working Temperature: -35° to +55°
• Battery Selection: Gel, Sealed, Flooded, Lithium-ion
• Enclosure: IP30
• Temperature Compensation: -30mV/°C/12V @ 25°C
• Control Mode: MPPT Charging
• Max PV Wire Size: 6mm²

Dimensions: 150mm x 216mm x 56.7mm

Weight: 0.92kg

PRODUCT CODE: TRIRON1206N

Epever DuoRacer Solar charge Regulator for controlling the charge to two separate battery banks.

The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Features

• Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
• Bluetooth (Bluetooth Adapter required)
• Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
• The wider range of the MPP operation voltage to improve the PV module utilization
• Auto control function of charging power & charging current limitation (BATT1)
• High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
• Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
• BATT1 type can be set via LED/LCD.
• Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
• 100% charging and discharging in operation environmental temperature range.
• LED and LCD display units selectable.
• Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.

Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).

Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).

NOTE: the BATT1 and BATT2 must be at the same voltage level.

Specifications

Dimensions: 227.2 × 143 × 58.1 mm

Weight: 0.8kg

PRODUCT CODE:DR1206N_DDS
