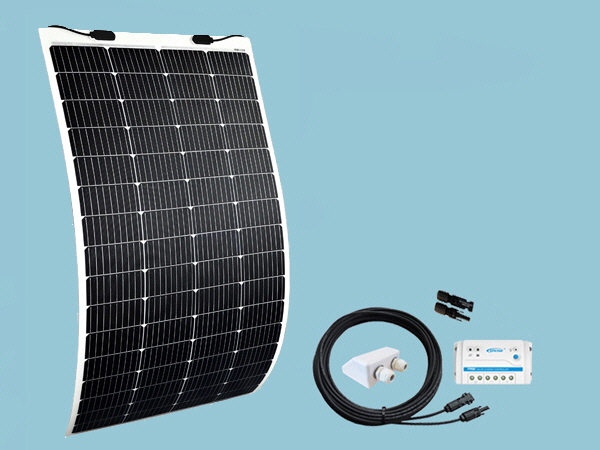

200W Sunshine Solar RV Flexible Solar Kit

This Sunshine Solar Flexible Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in camper/motorhome solar set-ups.

The Sunshine Flexible Solar range benefit from being thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and 3° solar panel flexibility for fitting on slightly curved surfaces our flexible solar range are perfect for caravans, motorhomes and campers.

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades.

If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.

Kit Performance - Summertime

• Standard Controller: 54Ah per day - (10-30% more with MPPT Controller)

PRODUCT CODE: KIT200RVF

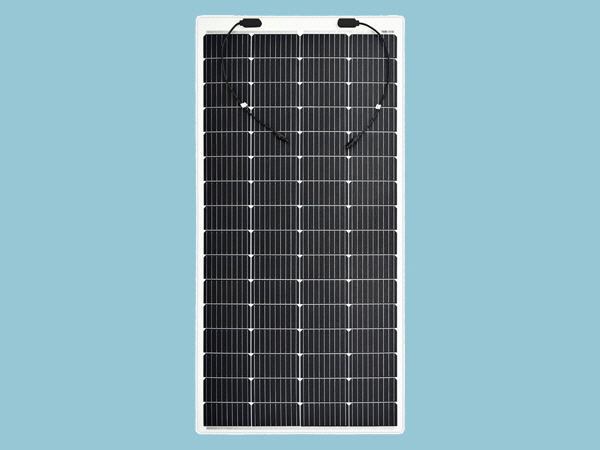

The Sunshine Solar RV Flexible Panels are made with an ETFE surface, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.

The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.

With a 200W Sunshine Solar RV Flexible Panel you could expect to generate around 66 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.

Solar Panel Specifications

• Maximum Power (Pmax): 200W
• Maximum Power Current (Ipm): 10.76A
• Maximum Power Voltage (Vpm): 18.6V
• Short Circuit Current (Isc): 11.29A
• Open Circuit Voltage (Voc): 21.8V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC600V
• Size: 1435 x 710 x 2mm
• Weight: 3.63kg

Features

• ETFE rough scratch resistant surface which can be walked on in deck shoes.
• Highly efficient monocrystalline cells
• Can be conveniently placed on slightly curved solid surfaces
• Can be easily bonded using Fixing Adhesive (no need for drilling)
• 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
• Three Year Manufacturers Warranty

Don't forget you can save money on add-ons to compliment your solar kit such as the Remote Meter, not only does this give you valuable data about the overall performance of your solar panel it also gives you info on your battery state of charge and makes setting up your system easier. You may also wish to add some Bostik-360 Fixing Adhesive at a reduced price for bonding the solar panel and cable entry cover.

XTRA-N G3 BLE series controllers are based on a new design concept, featuring a Bluetooth module which allows you to read and write parameters via Apple and Android Smartphones. The controllers adopt the advanced MPPT control algorithm, improving the maximum power point (MPP) tracking and acting speed. By minimizing the MPP loss rate and time, the controllers can track the MPP quickly to obtain the maximum energy under any conditions.

Independent voltage regulation, namely, the battery terminal of the controller can be connected to loads directly when there is no battery, this is a new added function. The Xtra Series are lithium batteries friendly, avoiding the instability output voltage caused by the internal protection of the lithium batteries.

Low self-consumption design significantly reduces the static power consumption and extends system standby time.

The Xtra Series perform well under the high temperature ensuring system stability. IP33 Ingress protection and isolated RS485 com port design improves the controller’s reliability to meet different application requirements. XTRA-N G3 BLE series adopts a three-stage charging mode, which effectively prolongs the battery's lifespan and improves performance. Comprehensive electronic protections, such as overcharge, over-discharge, PV & battery reverse polarity, etc., helps to protect the solar system components. This controller are widely used for RVs, Motorhomes, Caravans, Boats household systems, etc.

Features：

• High quality and low failure rate components of ST or IR to ensure the service life
• Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
• Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%
• Advanced MPPT control algorithm to minimize the lost rate and lost time
• Accurate recognizing and tracking of multi-peaks maximum power point
• Wider MPP(maximum power point) running voltage to optimize PV utilization
• Support multi battery types including lithium batteries
• Equipped with a stable self-activation function for the lithium battery
• Set the battery voltage parameters on the LCD
• Battery temperature compensation
• Limit the charging power & charging current to no higher than the rated value
• Real-time energy statistics function
• Charging power reduction automatically for over-temperature
• Built-in Bluetooth to adjust settings through EPEVER APP
• RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
• Setting parameters via the PC software, APP, or remote meter
• Constant voltage output function
• Comprehensive electronic protections
• Multiple load work modes
• Dustproof and waterproof design with IP33 enclosure
• Low self-consumption, lower than 10mA
• Operation at full load without charging power being reduced in the working temperature range

Specifications

• Max Rated Charging Current: 20 amps
• Max Rated Load Current: 20 amps
• Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V
• Max Input Voltage: 100Vdc
• MPPT Efficiency: 98.3%
• System Voltage: 12V/24V Auto-set
• Working Temperature: -25° to +55°
• Battery Selection: Gel, Sealed, Flooded, Lithium-ion
• Enclosure: IP33
• Temperature Compensation: -3mV/°C/2V @ (default)
• Control Mode: MPPT Charging
• Recommended Wire Size: 6mm˛

Dimensions: 217mm x 158mm x 56.5mm

Weight: 0.97kg

PRODUCT CODE: XTRA2210N-G3-BLE

The Dual Battery MPPT Solar Charge Controller from Epever adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Features

• Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
• Bluetooth (Bluetooth Adapter required)
• Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
• The wider range of the MPP operation voltage to improve the PV module utilization
• Auto control function of charging power & charging current limitation (BATT1)
• High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
• Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
• BATT1 type can be set via LED/LCD.
• Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
• 100% charging and discharging in operation environmental temperature range.
• LED and LCD display units selectable.
• Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.

 ① Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).

② Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).

NOTE: the BATT1 and BATT2 must be at the same voltage level.

Specifications

• Max Rated Charging Current: 20 amps
• Max Rated Load Current: 20 amps
• Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V
• Max Input Voltage: 100V (at min. operating environment temp) 46V (At 25℃ environment temp.)
• Max. conversion efficiency: 97.5%
• Self Consumption: 12mA/12V;8mA/24V - 4mA/12V;3mA/24V (Low-power mode)
• System Voltage: 12V/24V Auto-set
• Battery Selection: Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn
• Enclosure: IP33
• Max PV Wire Size: 4mm˛

Dimensions: 243.7 × 158 × 63 mm

Weight: 1.1kg

PRODUCT CODE: DR2210N_DDS
