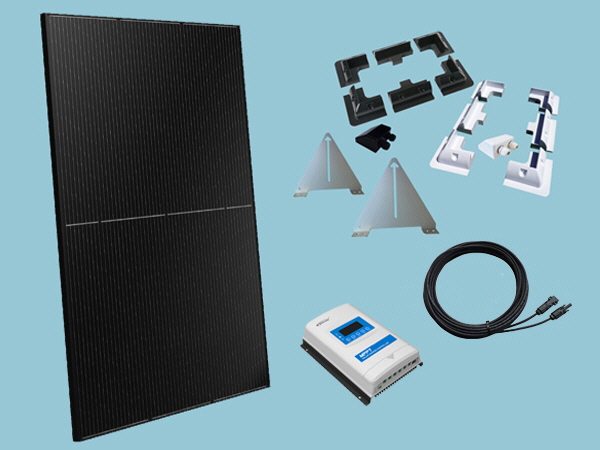

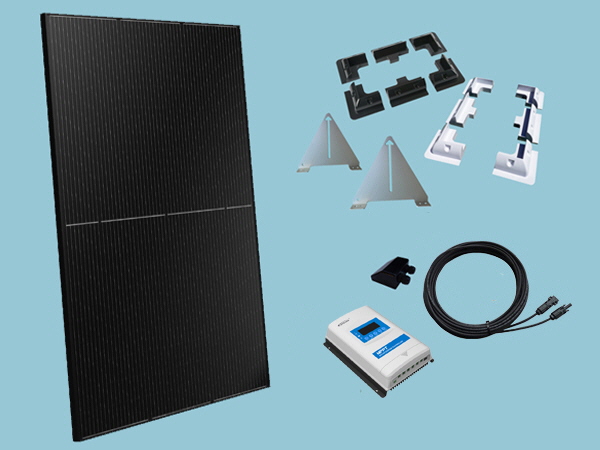

450W Sunshine Solar Boat & Motorhome Kit

This Sunshine Solar Power Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.

The solar power is harnessed with a high efficient, TOPCon (N-Type) Bifacial solar module, with an impressive 30 year linear power warranty this is the range to fit and forget.

Monitoring of the system can be made easy with an Apple Android smartphones, tablets, MacBook's and other devices, using the solar controllers built in Bluetooth function - (MPPT Single Battery Controller ONLY). If you select the MPPT Dual Battery Controller option you will need the Add-on Bluetooth Adapter - Cable and Coupler for Bluetooth functionality.

Important note: The solar panel needs a flat area of 1920mm x 1254mm these dimensions include the corner mounts supplied with the kit.

If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.

SAVE MONEY - Don't forget you can save money on a selection of add-on items such as Bostik-360 Fixing Adhesive recommended for bonding the solar mounts and cable entry cover.

450W N-Type TOPCon Bifacial, Dual Glass, Black Frame Solar Module

N-Type technology offering a high-performance product and high-efficiency energy conversion.

KEY FEATURES:

• High module conversion efficiency, up to 22.8%
• N-Type Bifacial Module Black Frame,
• Anodised Aluminium Alloy
• Glass Thickness: 1.6 mm
• Maximum System Voltage: 1,500V
• Better low irradiance performance - Higher power output even under low irradiance environments like on cloudy or foggy days
• Excellent Appearance and Performance - Bifacial solar cell, symmetrical design, low risk of hidden micro-cracks
• High Reliability - 3-fold IEC new standard tests passed
• Double Sided power generation - Bifaciality is up to 80%, up to 30% more energy yield than conventional modules
• Extensive Application Scenes - More extensive application scenes, such as Building-integrated photovoltaics (BIPV), snow field, vertical installation, high humidity, strong wind and desert region
• Extended load tests - Module certified for maximum static test load on the front (5400 Pascal) and maximum static test load on the rear (2400 Pascal) IP68 Rating, 3 bypass diodes
• Standard 25 year product warranty; 30-year performance warranty

SPECIFICATIONS:

• Nominal Max. Power (Pmax/W): 450
• Open Circuit Voltage (Voc/V): 39.18
• Short Circuit Current (Isc/A): 14.68
• Operating Voltage (Vmp/V): 32.47
• Operating Current (Imp/A): 13.86
• Efficiency (%): 22
• Cell Type: N Type
• Module Size: 1800 × 1134 × 30mm
• Glass Thickness:1.6mm
• Module Weight: 21.7Kg
• Output Cable: 4mm² cable length 1200mm (can be customized)
• Connectors: MC4 Series
• Junction Box:  IP68 - 3 bypass diodes
• Frame:  Black Anodized aluminium alloy

PRODUCT CODE: SSD-108ND450

XTRA-N G3 BLE series controllers are based on a new design concept, featuring a Bluetooth module which allows you to read and write parameters via Apple and Android Smartphones. The controllers adopt the advanced MPPT control algorithm, improving the maximum power point (MPP) tracking and acting speed. By minimizing the MPP loss rate and time, the controllers can track the MPP quickly to obtain the maximum energy under any conditions.

Independent voltage regulation, namely, the battery terminal of the controller can be connected to loads directly when there is no battery, this is a new added function. The Xtra Series are lithium batteries friendly, avoiding the instability output voltage caused by the internal protection of the lithium batteries.

Low self-consumption design significantly reduces the static power consumption and extends system standby time.

The Xtra Series perform well under the high temperature ensuring system stability. IP33 Ingress protection and isolated RS485 com port design improves the controller’s reliability to meet different application requirements. XTRA-N G3 BLE series adopts a three-stage charging mode, which effectively prolongs the battery's lifespan and improves performance. Comprehensive electronic protections, such as overcharge, over-discharge, PV & battery reverse polarity, etc., helps to protect the solar system components. This controller are widely used for RVs, Motorhomes, Caravans, Boats household systems, etc.

Features：

• High quality and low failure rate components of ST or IR to ensure the service life
• Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
• Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%
• Advanced MPPT control algorithm to minimize the lost rate and lost time
• Accurate recognizing and tracking of multi-peaks maximum power point
• Wider MPP(maximum power point) running voltage to optimize PV utilization
• Support multi battery types including lithium batteries
• Equipped with a stable self-activation function for the lithium battery
• Set the battery voltage parameters on the LCD
• Battery temperature compensation
• Limit the charging power & charging current to no higher than the rated value
• Real-time energy statistics function
• Charging power reduction automatically for over-temperature
• Built-in Bluetooth to adjust settings through EPEVER APP
• RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
• Setting parameters via the PC software, APP, or remote meter
• Constant voltage output function
• Comprehensive electronic protections
• Multiple load work modes
• Dustproof and waterproof design with IP33 enclosure
• Low self-consumption, lower than 10mA
• Operation at full load without charging power being reduced in the working temperature range

PRODUCT CODE: XTRA3210N-G3-BLE

Epever DuoRacer Solar charge Regulator for controlling the charge to two separate battery banks.

The Dual Battery MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, which will minimize the maximum power point loss rate and loss time, also fast track the maximum power point (MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. The controller features a low-power mode, which reduces standby current when the unit is idle preventing power waste and helping to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Features

• Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
• Bluetooth (Bluetooth Adapter required)
• Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
• The wider range of the MPP operation voltage to improve the PV module utilization
• Auto control function of charging power & charging current limitation (BATT1)
• High quality and low failure rate components of ST, TI and Infineon to ensure the product life.
• Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
• BATT1 type can be set via LED/LCD.
• Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
• 100% charging and discharging in operation environmental temperature range.
• LED and LCD display units selectable.
• Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.

 ① Life battery (BATT1) is the energy storage battery for powering the household loads in the off-grid system, which supports Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn batteries (the controller can NOT recognize the system voltage automatically).

② Start battery (BATT2) is the energy storage battery which usually built in the vehicle for powering the system such as RV and Boat, and only supports lead-acid battery (the controller will recognize the system voltage automatically).

NOTE: the BATT1 and BATT2 must be at the same voltage level.

Specifications

• Max Rated Charging Current: 30 amps
• Rated Solar Charge Power: 390 Watts @ 12V - 780 Watts @ 24V
• Max Input Voltage: 100V(At min. operating environment temp.) 92V(At 25℃ environment temp.)
• Max. conversion efficiency: 98%
• Self Consumption: 26mA/12V;15mA/24V 19mA/12V;10mA/24V(Low-power mode)
• System Voltage: 12V/24V Auto-set
• Battery Selection: Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn
• Enclosure: IP33
• Max PV Wire Size: 10mm²

Dimensions: 247.2 × 165 × 68.5 mm

Weight: 1.4kg

PRODUCT CODE: DR3210N_DDS
