2730W - 48V Off Grid Solar Kit - Power Inverter

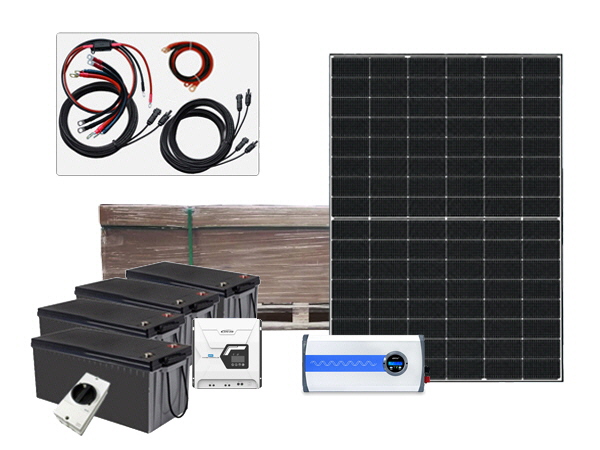

The 2730W Off Grid Solar Kit comes complete with all the essential cables, switches and AGM batteries.

AGM Batteries are renowned for having a longer lifespan than traditional flooded lead acid batteries, with the added advantage of being spill proof and they also respond better to loading making them a good choice for running the kits power inverter.

The solar power is harnessed with high efficient, N-type TOPCon solar module with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 228Ah on a 48V system per day during the summer months.

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Kit Performance - Summertime

• MPPT Controller: 48V System - 228Ah per day

PRODUCT CODE: KITPK2730348IP

The Sungrow SG-48TG4D is a high-efficiency N-type TOPCon solar module designed for high performance and durability. With a maximum efficiency of 22.8%, it delivers high power output in a compact size, making it ideal for both residential and commercial installations.

Its dual-glass bifacial design captures sunlight from both the front and rear surfaces, increasing total energy yield.

KEY FEATURES:

• High module efficiency: 22.8%
• N-type TOPCon Bifacial Module
• Black-anodised Aluminium Alloy
• Cells: 96 cells
• Glass: Dual glass, 2.0mm + 2.0mm semi-tempered glass
• Maximum System Voltage: 1,500V
• Smaller Size: A lightweight design for convenient transportation and installation
• Anti-PID Guarantee: Minimises the chance of degradation caused by PID phenomena through optimisation of cell production technology and material control
• Heat Resilience: A low temperature coefficient of -0.29%/°C
• Extended load tests - Heavy snow load up to 5400 Pascal wind load up to 2400 Pascal
• IP68 rated junction box
• Standard 25-year product warranty; 30-year performance warranty

PRODUCT CODE: SG-48TG4D-455

The TES series dual PV input controller is built for users who want more freedom in PV design without sacrificing charging performance. With two PV input channels on selected models, you can connect separate solar strings for better layout flexibility, or combine inputs to scale PV capacity within safe limits. This makes the controller a strong fit for RV systems, cabins, monitoring sites, and modular off grid power setups where roof space or panel orientation is not uniform.

At the core, TES uses high efficiency MPPT tracking to maximize energy harvest across changing sunlight conditions. It automatically adapts to 12V 24V or 48V battery systems and provides multiple current options from 60A up to 100A, allowing you to match the controller to both compact and higher demand installations. High PV voltage input designs support longer strings, helping reduce wiring loss and simplify system layout.

TES is also designed for modern battery choices. It works smoothly with lithium batteries and lead acid batteries, and supports BMS communication on compatible lithium packs for more accurate charging control. When batteries are unavailable or temporarily disconnected, the controller can operate in no battery mode, supplying power directly from PV when sunlight is sufficient. For growing systems, parallel connection of up to 6 controllers is supported, making future expansion straightforward.

With isolated RS485 communication, optional Wi-Fi or 4G monitoring modules, and clear LCD local settings, TES helps users monitor system status, review energy records, and keep performance stable over time. The result is a dual PV input controller that supports flexible solar growth, dependable battery charging, and practical off grid operation.

PV Input (DC)

• Max. Open-circuit Voltage 150V(@ lowest temperature), 135V(@25℃)
• MPPT Voltage Range (Battery voltage plus 2V, and>20V) to108V(@25℃)
• Number of MPPTs 1

• AGM(Default) / GEL / FLD/ User
• Lithium Battery Type LFP / NCM / User
• Rated Voltage 12/24/48VDC or Auto
• Rated Charging Current 60A
• Rated Charging Power 780W/ 1560W/ 3120W
• Temperature Compensate Coefficient －3mV/℃/2V(Default)

• Output Voltage Range 8V～62V
• Static Loss (Enabled Communication) 98mA/12V, 60mA/24V, 46mA/48V
• Static Loss (Disabled Communication) 48mA/12V, 25mA/24V, 14mA/48V
• Grounding Common negative grounding
• Communication Method 5VDC/200mA(RJ45)

• Tracking Efficiency ≥99.5%
• Max. Conversion Efficiency 98.30%

• Operating Temperature -25℃ to +60℃
• Storage Temperature -30℃ to +70℃
• Relative Humidity 5%～95% (N.C.)
• Altitude ＜5,000m (＞2,000m Derating)
• Ingress Protection IP32

• Dimensions (L x W x H)(mm) 270 x 305 x 91
• Mounting Dimensions (L x W)(mm) Φ6.5
• Weight (Kg) 3.85
• Recommended Cable Size 6AWG/16mm²

• EN/IEC61000-6-2; EN/IEC61000-6-4; EN/IEC62109-1; IEC 62109-1; IEC 62321

PRODUCT CODE:TES6415

IPower-Plus is a new generation of pure sine wave inverter compatible with the lithium battery system. This new inverter adopts surge current suppression technology to effectively prevent the surge current from damaging the lithium battery cells and BMS (Battery Management System). Also, adopting the voltage and current double closed-loop control algorithm brings the inverter a faster response and better resistance to the load impact. The inverter is built using high quality key components with high power density and long lifespan to provide a stable and reliable power guarantee.

The optional communication solutions allow users to monitor the real-time status or change the parameters wherever. The inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.

With excellent EMC (Electro Magnetic Compatibility) characteristics, the inverter is also suitable for high power quality requirements.

Features:

• Completely electrically isolated design for input and output
• Full digital double closed-loop control
• Excellent EMC characteristic, widely applied to higher quality power systems
• Advanced SPWM technology and pure sine wave output
• Input surge current suppression technology, applying to the lithium battery systems
• Outstanding load resistance to impact, applying to the air conditioners, washing machines, refrigerators, etc.
• High power density and high-quality components to ensure the reliability
• Output power factor up to 1
• Low loss of zero loads and standby. Low THD (Total Harmonic Distortion). High conversion efficiency
• Extensive protections: input reverse polarity/under voltage/over voltage, output overload/short circuit/overheating
• Air cooling is controlled by temperature and load
• Rotatable LCD meter to simplify the system wiring
• Friendly LCD meter for easy monitoring and parameter configuration
• Remote control by the phone Apps and PC software
• Configurable output voltage and output frequency
• Charging mobile phones, DC fans, and other electrical equipment by the USB port
• Support a variety of options by connecting with the RS485 com.
• External switch contact design to allow remote control
• IEC62109, EN61000, RoHS approved

PRODUCT CODE: IP3000_42
