100W Sunshine Solar Caravan Motorhome & Boat Kit
This 100W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. This kit features a Slimline Solar Panel so that even with the narrowest of spaces you can still accommodate our most popular 100W Solar Panel. With the 100 Watt solar power kit you could expect to generate around 27 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
100W Sunshine Solar Caravan, Motorhome & Boat Kit – 12V Slimline Solar Panel System
Product Overview
Looking for a reliable 100W solar panel kit for your caravan, motorhome, campervan or boat? The Sunshine Solar 100W Caravan, Motorhome & Boat Kit is a compact solar charging solution designed to help maintain your 12V leisure battery and replenish power used during your trips.
Featuring a 100W monocrystalline shingled solar panel, this slimline kit is ideal for installations where roof space is limited. It can help keep your leisure battery charged while touring, wild camping, cruising or storing your vehicle between adventures.
The kit includes a solar charge controller, mounting options, extension cables and a waterproof cable entry cover, providing the key components needed for a solar charging installation. Choose from available standard PWM or MPPT charge controllers, with single-battery and dual-battery options to suit your setup.
Whether you need a caravan solar panel kit, a motorhome battery charging system or a boat solar charging solution, this versatile 100W kit offers a practical way to generate renewable electricity.
Key Features and Benefits
- 100W solar panel: Generates solar electricity to support 12V leisure battery charging.
- Slimline shingled design: The narrow 450mm panel width makes it suitable for installations where roof space is restricted.
- Monocrystalline solar technology: Designed to deliver reliable solar performance.
- Choice of solar charge controller: Select a standard PWM controller or upgrade to MPPT technology for improved energy harvesting.
- Single or dual-battery charging: Choose a compatible controller for your battery configuration.
- Flexible mounting options: Select from available ABS corner mounts, streamline mounts or suitable narrowboat tilt-and-flip mounts.
- Versatile applications: Suitable for caravans, motorhomes, campervans and boats.
- Expandable solar system: Additional compatible panels may be added, subject to controller and system limits.
- Outdoor construction: Designed for use in outdoor solar installations.

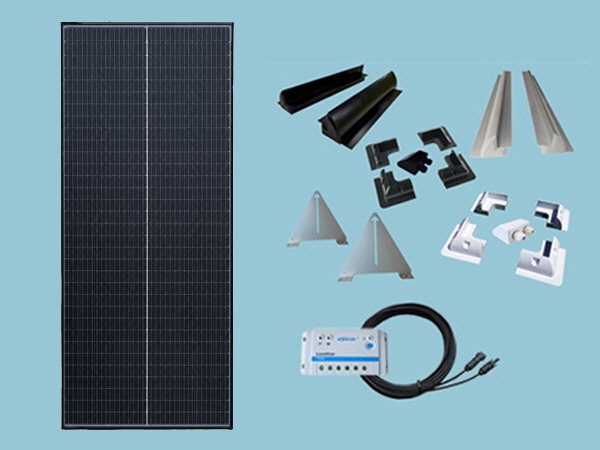

What's Included in the 100W Solar Kit?
The Sunshine Solar 100W kit includes the following components:
- 1 x 100W Sunshine Solar monocrystalline shingled solar panel
- 1 x 6-metre extension cable set with connectors
- 1 x selected solar mounting kit
- 1 x ABS waterproof cable entry cover
- 1 x selected solar charge controller
Choose your preferred mounting system and solar charge controller when ordering. Available controller options include standard PWM and upgraded MPPT models, with single-battery and dual-battery configurations available.
Please note: Check the product options before ordering to confirm the specification of your selected configuration and any additional costs associated with upgrades.
How Much Power Does a 100W Solar Panel Generate?
A 100W solar panel produces different amounts of energy depending on sunlight, season, panel orientation, shading and the solar charge controller used.
Under favourable UK summer conditions, the manufacturer's indicative performance estimates for this kit are:
- Approximately 27Ah per day with a standard PWM solar charge controller.
- Approximately 33Ah per day with a compatible MPPT solar charge controller.
These figures are indicative rather than guaranteed. Actual output will vary according to weather, location, installation angle and system efficiency. Solar generation in the UK is generally considerably lower during winter.
The electricity generated can help replenish your leisure battery and support everyday 12V equipment, including LED lighting, water pumps and small electronic devices. Actual running time depends on battery capacity, energy consumption and available sunlight.
Why Choose a 100W Caravan Solar Panel Kit?
A 100W solar kit is a popular option for maintaining a leisure battery and supplementing your electrical supply without installing a larger solar array.
For Caravans
Help maintain your 12V leisure battery during trips and when your caravan is parked without access to mains electricity.
For Motorhomes and Campervans
Generate renewable electricity while touring, wild camping or staying at campsites without electrical hook-ups.
For Boats and Narrowboats
Use available sunlight to help maintain onboard battery charge and reduce reliance on other charging sources.
For Vehicle Storage
Help maintain battery charge when a vehicle is parked for extended periods, provided the installation and energy balance are appropriate.
A 100W solar panel is intended to supplement battery charging rather than guarantee continuous power for energy-intensive appliances. Consider a higher-wattage solar system if you regularly use a fridge, inverter, electric cooking equipment or other substantial electrical loads.
Solar Charge Controller Options: PWM or MPPT?
The kit allows you to select a solar charge controller suited to your battery setup.
Standard PWM Solar Charge Controller
A straightforward, economical option for charging a compatible battery bank. The manufacturer's indicative summer performance estimate for this kit is approximately 27Ah per day.
MPPT Single-Battery Controller
Maximum Power Point Tracking (MPPT) technology can improve the amount of energy harvested from the solar panel. The optional Bluetooth-enabled model also supports monitoring and configuration through a compatible smartphone app.
MPPT Dual-Battery Controller
An option for suitable installations where both a leisure battery and a compatible starter battery need charging. Check battery chemistry, voltage and controller compatibility before selecting this configuration.
The manufacturer's estimated summer output with an MPPT controller is approximately 33Ah per day. Actual performance varies with operating conditions, and MPPT gains are not guaranteed.
Installation and Mounting

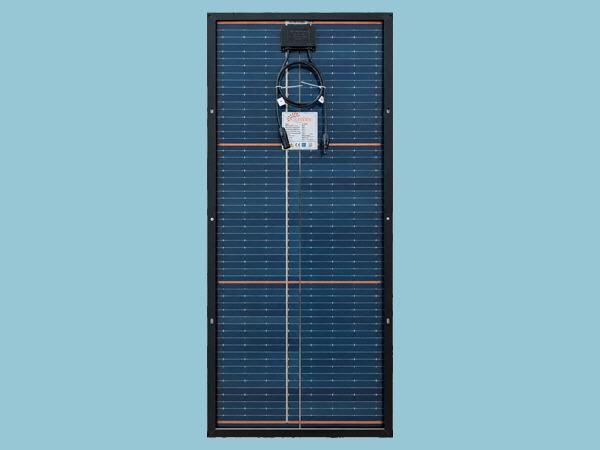

The 100W slimline solar panel measures 450mm wide and 1,190mm long, making it suitable for caravan, motorhome and boat roofs where available space is limited.
Choose from the available mounting options to suit your roof or deck installation. Fitted ABS corner mounts add approximately 120mm to both the overall panel length and width. Streamline mounts add approximately 120mm to the overall panel length.
Before installation, check the available mounting area, cable routing, roof construction and suitability of the selected fixing method. Ensure the solar charge controller is compatible with your battery and follow the manufacturer's installation instructions.
If you are unsure about the electrical installation, consult a qualified installer.
Order Your Sunshine Solar 100W Kit
Choose the 100W Sunshine Solar Caravan, Motorhome & Boat Kit for a compact solar charging solution that helps you make better use of available sunlight.
With a slimline shingled solar panel, mounting options, extension cables, a waterproof cable entry cover and a choice of charge controllers, this kit is a practical starting point for caravan, motorhome and marine battery charging.
Select your mounting and controller options to configure your kit for your next adventure.
