ORI242417040- The Victron Orion XS 1400 DC-DC Battery Charger is a compact, high-efficiency DC-DC battery charger designed for dual-battery 12V, 24V, and mixed-voltage systems. It delivers up to 1400W charging power with configurable input/output current limits, Bluetooth monitoring via VictronConnect, intelligent multi-stage charging for lithium and lead-acid batteries, and fanless cooling for reliable operation in harsh vehicle and marine environments.

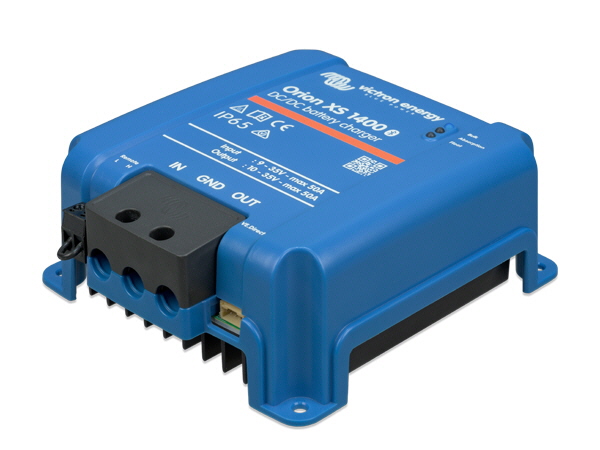

Victron Orion XS 1400 DC‑DC Buck‑Boost Charger
The Orion XS 1400 is Victron’s next‑generation, non‑isolated smart DC‑DC buck‑boost charger for dual‑battery systems up to 1 400 W / 50 A. Its wide 9 – 35 V input and 10 – 35 V user‑adjustable output let it stabilise or raise/lower voltage between 12 V and 24 V banks, making it perfect for service batteries in campers, 4×4s, boats and industrial equipment.
Adaptive 4‑stage algorithm & LiFePO₄ safeguards – automatic bulk/absorption/float/storage with low‑temperature shutdown to protect lithium packs.
98.5 % peak efficiency with < 100 mA no‑load draw and < 1.5 mA standby, minimising parasitic losses.
Smart‑alternator friendly – engine‑running detection prevents starter battery drain and complies with Euro 6/7 variable‑voltage alternators.
Fully programmable via Bluetooth (VictronConnect) – set charge current in 0.1 A steps, voltage set‑points, input‑voltage lock‑outs and more.
Comprehensive protection – short‑circuit (50 A constant), over‑temperature, over‑voltage and reverse‑polarity safeguards; remote on/off terminals for system interlock.
Rugged, compact build: anodised aluminium IP65 enclosure, vibration‑resistant potting, 138 × 124 × 53 mm, 0.52 kg – easy to mount even in tight engine bays or consoles.
Whether you’re charging a house bank from a smart alternator, linking mixed‑voltage batteries or buffering sensitive electronics, the Orion XS 1400 delivers silent, high‑efficiency power with Victron’s hallmark reliability.
PRODUCT CODE: ORI242417040
