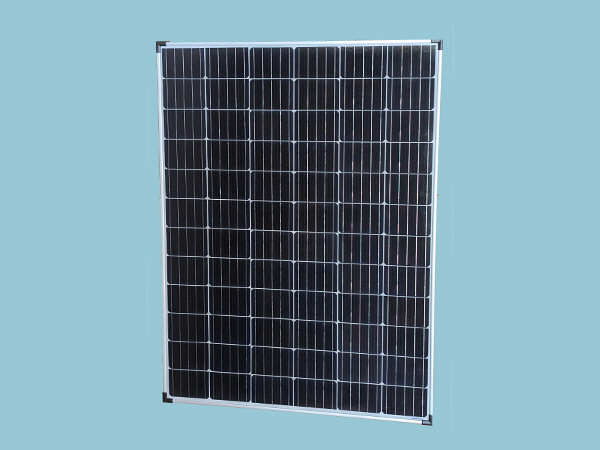

Sunshine Solar Panel 240W 12V Mono

With a Sunshine 240W solar panel you could expect to generate around 60 amps per day when used in conjunction with a PWM solar charge controller and around 80 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.

Specifications

• Maximum Power (Pmax): 240W
• Maximum Power Current (Ipm): 11.94A
• Maximum Power Voltage (Vpm): 20.10V
• Short Circuit Current (Isc): 12.61A
• Open Circuit Voltage (Voc): 23.90V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC1000V
• Size: 1316mm x 992mm x 35mm
• Weight: 13.2kg

Features

• 900mm of 4mm single-core cable fitted with MC Type 4 Connectors
• High Performance Mono Crystalline Cells
• Factory fitted aluminium frame with pre-drilled mounting holes
• Multiple pieces can be connected to acquire higher power
• Suitable for charging all types of 12 volt batteries
• Fitted with bypass diodes to minimise the effect of shading
• Completely weatherproof

Guaranteed Performance

• 5 Years Manufacturers Warranty
• 10 Years Warranty 90% Power Output
• 20 Years Warranty 80% Power Output

Suitable Solar Charge Controllers

• PWM Solar Controller 20A - 12/24V
• PWM Dual Battery Controller 20A - 12/24V
• MPPT Solar Controller 20A - 12V/24V (10% - 30% more power generation)
• MPPT Dual Solar Controller 20A - 12V/24V (10% - 30% more power generation)

SAVE MONEY - Add any - 'Often Purchased Together' items to your cart and SAVE MONEY

PRODUCT CODE: SSP240M
