3915W - 48V Off Grid Solar Kit - Inverter/Charger

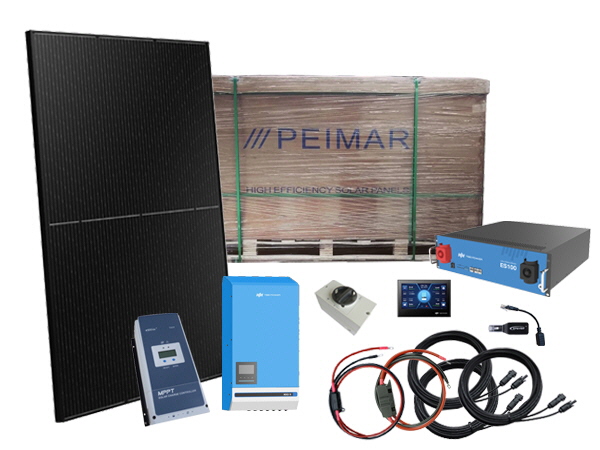

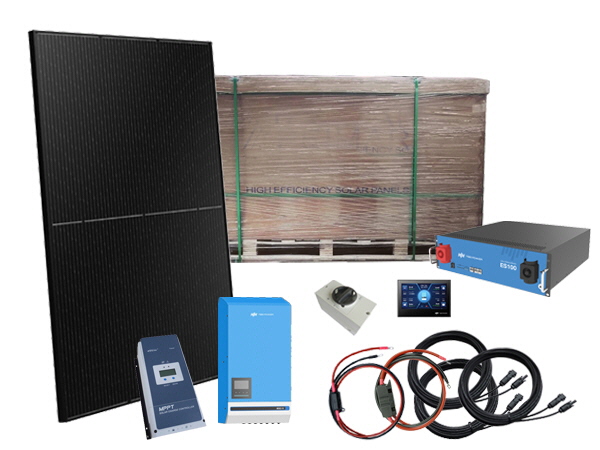

The 3915W Off Grid Solar Kit comes complete with all the essential cables, switches and the latest 48V 105Ah lithium battery module, designed for backup power systems, solar off-grid systems, and residential, industrial & commercial energy storage systems.

The solar power is harnessed with high efficient, Italian Made Peimar solar panels with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 326Ah on a 48V system per day during the summer months.

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the included Bluetooth Adapter.

Kit Performance - Summertime

• MPPT Controller: 48V System - 326Ah per day

PRODUCT CODE: KITPK3915548TB

Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.

The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.

10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".

Discover what happens when innovation meets technology.

Solar Panel Specifications

• Power Class: 435W
• Maximum Power Current: (Ipm): 13.05A
• Maximum Power Voltage: (Vpm): 33.34V
• Short Circuit Current (Isc): 13.65A
• Power Output Tolerance (Pmax): 0/+5
• Open Circuit Voltage (Voc): 38.90V
• Nominal Operating Cell Temp. (NOCT): -40 to +85°C
• Maximum System Voltage: 1500V DC
• Cells: 108 M10 Half Cells N-TYPE
• Frame Colour: Black
• Module Efficiency (%): 22.51
• Connector Type: MC4 or compatible connector
• Length (mm): 1722
• Width (mm): 1134
• Thickness (mm): 30
• Product Weight (Kg): 22

Guaranteed Performance

• 30 Year Linear Power Warranty
• 25 Year Product Warranty
• Engineered in Italy

PRODUCT CODE: OR10H435MN

This series of controllers can effectively prolong the life-cycle of batteries, significantly improving the systems performance. The load, utility or generator auto-control relays make it ideal to use with a solar power system and backup generator. All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection this effectively ensure a safe and reliable solar system. The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customers to expand the control parameters. Up to 8 controllers can be in linked in parallel for synchronised charging to meet future system expansions and monitoring requirements.

Features

• CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3).
• High quality & low failure rate components of ST and Infineon to ensure the product’s life.
• Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%.
• Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%.
• Advanced MPPT control algorithm will minimise the MPP loss rate and loss time.
• The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.
• The wider range of MPP operating voltage.
• Auto control system to limit the charging power & current go over the rated value.
• Support 4 charging options: Sealed, Gel, Flooded and User.
• Battery temperature compensation function.
• Real-time energy recording and statistical function.
• Automatic over-temperature power reduction function.
• Hundred percent full load operation in working environment temperature range within charging & discharging
• Support up to 8 units in parallel to expand system
• Load relay control external load switch signal to realise diversified load work modes
• The first and the second disconnection of load control, contain two relay’s contact.
• Auto-control of utility and generator relay design
• Utility or generator auto-control relays make it easy to compose the hybrid power system
• The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
• Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• To monitor or set the parameters by using the phone Apps or PC software.

Specifications

• Nominal System Voltage: 12/24/36/48VDC or Auto
• Battery Input Voltage Range: 8V～68V
• Battery Type: Sealed(Default)/Gel/Flooded/User
• Lithium Battery Type: LiFeP04/LI (NICoMn)/O2 User
• Max Rated Charging Current: 80A
• Max Rated Charge Power: 1000W/12V - 2000W/24V - 3000W/36V - 4000W/48V
• Max Input Voltage: 150Vdc
• Max. conversion efficiency: 98.6%
• Full load efficiency: 98%
• Tracking efficiency: ≥99.5%
• Self Consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V
• Grounding: Common negative grounding
• Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
• Ambient temperature range: -25℃～+60℃ (Derate above 45℃)
• Enclosure: IP20

Dimensions: 394×240×134mm

Weight: 6.1kg

PRODUCT CODE: TRACER8415AN

RiiO II Series is a versatile transformer-based inverter charger, designed for backup power, off-grid and ESS applications. It features high surge power for heavy loads and a 4ms quick transfer for uninterrupted critical load support during outages, supports up to 9 parallel units, three-phase expansion, and AGS function. Its smart port allows for dual AC inputs or outputs configurations, enhancing system power flexibility and load management.

PRODUCT CODE: RIIO-5KVA-S48V
