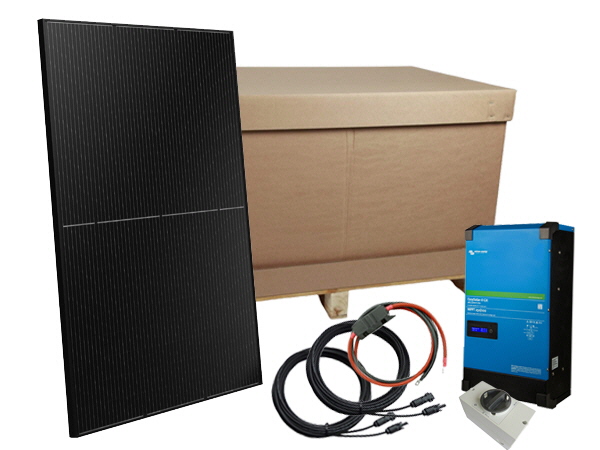

4000W - 48V Off/On Grid Solar Kit - 3000VA Inverter/ Charger/MPPT

Our 4000W off/on-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings.

The solar power is harnessed with high efficient, Italian Made Peimar solar panels with an impressive 30 year linear power warranty this is the range to fit and forget.

Each kit has been designed for a quick and easy install and include all cables and connectors along with the Victron EasySolar-II GX that integrates a MultiPlus-II inverter/charger, SmartSolar MPPT solar charge controller and a GX device display.

PRODUCT CODE: KITPK4000348VENB

SRG400 - 400 watt solar panel, on the 182 mm mono solar cell, takes unique half-cut cell technology, reduces interconnection losses, and brings higher efficiency.

Suitable for Multiple Scenarios – Ideal for 12V off-grid applications, including RVs, rooftops, cabins, yachts, homes, fences, greenhouse, and LED lights. High efficiency, pleasant design and an exceptional warranty.

Solar Panel Specifications

• Power Class: 400W
• Maximum Power Current: (Ipm): 12.78A
• Maximum Power Voltage: (Vpm): 31.3V
• Short Circuit Current (Isc): 13.42A
• Power Output Tolerance (Pmax): 0/+5
• Open Circuit Voltage (Voc): 36.6V
• Nominal Operating Cell Temp. (NOCT): -40 to +85°C
• Maximum System Voltage: 1000V DC
• Cells: 108 Half Cells (6x9x2)

• Frame Colour: Black
• Module Efficiency (%): 25.7
• Connector Type: MC4 or compatible connector
• Length (mm): 1770
• Width (mm): 1134
• Thickness (mm): 30
• Product Weight (Kg): 18.2

Guaranteed Performance

• 10 Year Manufacturers Warranty
• 25 Year Product Warranty

PRODUCT CODE: SRG400

The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

Features of the - Victron Energy EasySolar-II 48V 3000VA GX

The all-in-one solar power solution

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port An Ethernet port
• A VE.Direct port

PMP482307010
