4000W - 48V Off Grid Solar Kit - 6000VA Inverter/ Charger

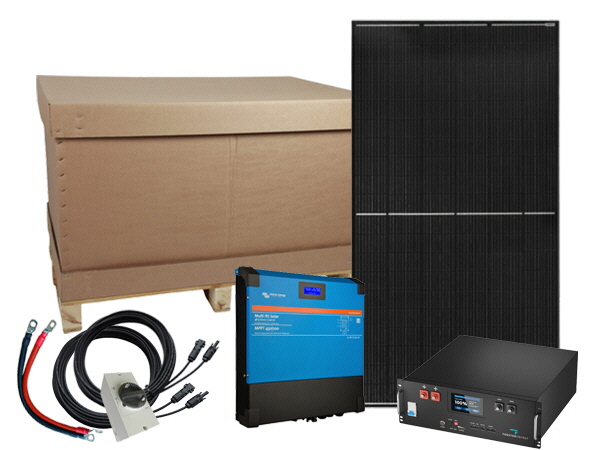

The 4000W Off Grid Solar Kit comes complete with all the essential cables, switches and a lithium battery.

Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input.

Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation. The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app

Features

 Hybrid Inverter/Charger

The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with 450VDC 4kWp PV input.

Combination of an inverter, AC charger, and Solar MPPT

The inverter produces a perfect sine wave, and able to supply high powered appliances. It is also bi-directional, charging the battery when excess solar power or AC supply is available, or converting from the battery when it is needed.

Wide MPPT voltage range 80 – 450VDC, with a 120 VDC PV startup voltage.

Light weight, efficient and quiet

Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display, Bluetooth and VictronConnect app

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.

Extendable PV capacity, both AC-coupled and DC-coupled

The integrated 4kWp PV capacity can be extended by adding Solar Chargers to the system, for example our Smart Solar Charger range, including the Smart Solar RS models. When connected in a VE.Can network, all battery charging will operate synchronously and coordinated. Alternatively, the PV capacity can be extended by installing PV Inverters, of which the output power will be automatically controlled by the integrated Frequency Shift Power Control.

Communication ports

VE.Can connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.

I/O Connections

Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.

Suntech 400 Watt Ultra V Mini PERC with Black Frame

Tempered glass with an anodised aluminum alloy frame, all black high-performance solar panel. The half-cell technology enables the module to give a higher power output whilst reducing the system cost. With the use of the latest cell connection technology, the length of the current conductors on the solar cell is reduced by 50% in the transverse direction, which also effectively reduces the internal resistance of the solar cell. A smaller distance between the cell connectors significantly reduces the risk of losses through micro cracks and thus increases the reliability of the solar system.

KEY FEATURES:

• High module conversion efficiency
• Front cover: tempered glass, 3.2 mm
• Excellent weak light performance - More power output in weak light condition, such as haze, cloudy, and morning
• High PID resistant - Advanced cell technology and qualified materials lead to high resistance to PID
• Lower operating temperature - Lower operating temperature and temperature coefficient increases the power output
• Withstanding harsh environment - Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline
• Extended load tests - Module certified for maximum static test load on the front (6000 Pascal) and maximum static test load on the rear (3800 Pascal) Suntech current sorting process - Up to 2 % power loss caused by current mismatch could be diminished by current sorting technique to maximize system power output
• IP68 rated junction box
• Standard 15 year product warranty; 25 year performance warranty

SPECIFICATIONS

• Power Class: 400W
• Maximum Power Current: (Ipm): 12.83A
• Maximum Power Voltage: (Vpm): 31.18V
• Short Circuit Current (Isc): 13.73A
• Power Output Tolerance (Pmax): 0/+5
• Open Circuit Voltage (Voc): 37.04V
• Nominal Operating Cell Temp. (NOCT): -40 to +85°C
• Maximum System Voltage: 1500V DC
• Watts/ m²: 199.5
• Cells: 108 Half Cells (6X18 half cells)
• Frame Colour: Black
• Module Efficiency (%): 20.5
• Connector Type: MC4-EVO2 Compatible
• Length (mm): 1,724
• Width (mm): 1,134
• Thickness (mm): 35
• Product Weight (Kg): 22


Munich Re Insurance Backed Warranty

PRODUCT CODE: KITPK4000648VE
