8700W - 48V Off Grid Solar Kit - Inverter/Charger/MPPT

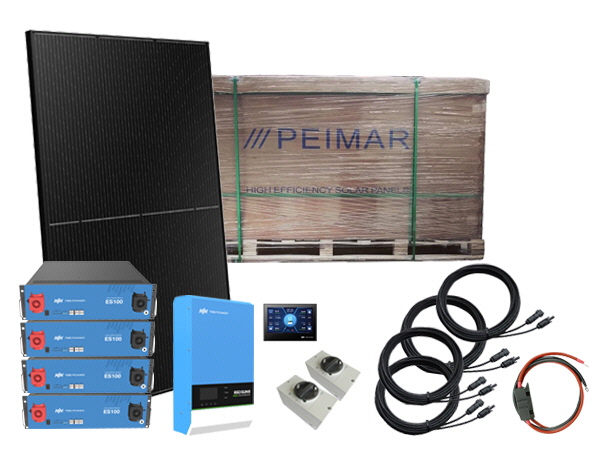

The 8700W Off Grid Solar Kit comes complete with all the essential cables, switches and four of the latest 48V 105Ah lithium battery modules from TBB, designed for backup power systems, solar off-grid systems, and residential, industrial & commercial energy storage systems.

The solar power is harnessed with high efficient, Italian Made Peimar solar panels with an impressive 30 year linear power warranty this is the range to fit and forget. Included in the kit is a RiiO Sun II series reliable and versatile all-in-one solar inverter for off-grid, energy storage systems and self-consumption applications, combining a pure sine wave inverter, battery charger, MPPT solar charge controller and a high-speed automatic transfer switch all within a compact casing with a user friendly display.

Monitoring of the system can be made easy with the E4 is an Intelligent LCD touch monitor providing intuitive, local and real-time control and monitoring for the RiiO Sun II series.

Kit Performance - Summertime

• MPPT Controller: 48V System - 725Ah per day

PRODUCT CODE: KITPK8700548TB

Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.

The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.

10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".

Discover what happens when innovation meets technology.

Solar Panel Specifications

• Power Class: 435W
• Maximum Power Current: (Ipm): 13.05A
• Maximum Power Voltage: (Vpm): 33.34V
• Short Circuit Current (Isc): 13.65A
• Power Output Tolerance (Pmax): 0/+5
• Open Circuit Voltage (Voc): 38.90V
• Nominal Operating Cell Temp. (NOCT): -40 to +85°C
• Maximum System Voltage: 1500V DC
• Cells: 108 M10 Half Cells N-TYPE
• Frame Colour: Black
• Module Efficiency (%): 22.51
• Connector Type: MC4 or compatible connector
• Length (mm): 1722
• Width (mm): 1134
• Thickness (mm): 30
• Product Weight (Kg): 22

Guaranteed Performance

• 30 Year Linear Power Warranty
• 25 Year Product Warranty
• Engineered in Italy

PRODUCT CODE: OR10H435MN

RiiO Sun II series is a brand-new versatile all-in-one solar inverter for off-grid, energy storage systems and self-consumption applications, combining a pure sine wave inverter, battery charger, MPPT solar charge controller and a high-speed automatic transfer switch in a compact casing with a user friendly display.

Compared with the previous RiiO Sun series, it boasts higher PV open circuit voltage, higher PV charging power and current, and supports parallel and three-phase operation up to 9 units to achieve higher power output (up to 72kVA).

It is optional to work without battery and only use solar energy to power loads directly.

You can start with a smaller system and gradually expand, depending on what best suits your needs and budget..

RiiO Sun II supports energy feeding back to power loads on the AC input to maximize self-consumption and cut down system investment.

Auto generator start function is also available for RiiO Sun II. Its power assist and power control function enable it to work well with limited AC sources such as generators or limited grid.

RiiO Sun II can automatically adjust its charging current by taking loads into account to protect the AC source from overload.

Features

• All-in-one, plug and play design for easy installation
• Transformer-based, easily withstand the initial surge current
• Versatile for solar off-grid, ESS, self-consumption and backup power system
• Support parallel and three-phase
• Maximize self-consumption
• Programmable output relay for generator start and stop
• User friendly display
• Power assist and power control
• Built-in ECO Mode to prolong the battery backup time
• Compatible with mainstream lithium battery brands
• Max inverter efficiency 94%, max
• MPPT efficiency 98%
• Extremely low self-consumption power
• Remote monitoring and control via Nova Web & APP Fully programmable by AP
• Warranty: 4 years

PRODUCT CODE: RiiOSunII-5kVA

ES100 is the latest 48V 105Ah lithium battery module, designed for backup power systems, solar off-grid systems, and residential, industrial & commercial energy storage systems, with good compatibility, high energy density, fashionable design, and safe long cycling life.

ES100 energy storage product’s anode materials are lithium iron phosphate. Battery cells are managed effectively by BMS for optimal performance.

Features

• Suitable for applications with a rated voltage of 48V
• Built-in battery management system for better performance, possessing protection functions like over-discharge protection, over-charge protection, over-current protection, abnormal temperature protection.
• Support up to 32 modules in parallel to prolong the standby time.
• Support parameter configuration and data monitoring via TBBlink software.
• Support CAN communicate with mainstream inverters, like TBB inverter/Victron inverter.
• Self-ventilation with lower system noise
• Less battery self-discharge, during storage, its power can be self-discharged for 6 months at max until it is recharged
• No memory effect so that battery can be charged and discharged shallowly.
• Wide range of temperature for working environment, -20℃ ~ +55 ℃. Circulation span and discharging performance are well under high temperature.
• Less volume, lighter weight.
• Warranty: 7 years +3 year free extension when Nova online monitoring is installed.

PRODUCT CODE: ES100
